PVD1352NSPBF - Infineon

Description: Solid State Relays - PCB Mount 100V 1 Form A Photo Voltaic Relay

Download PVD1352NSPBF Model

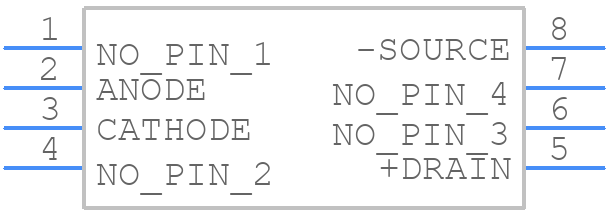

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PVD1352NSPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8 LEAD SOIC-ren2
click to zoom
3D Models
PVD1352NSPBF - Infineon  - 3D model - Small Outline Packages - 8 LEAD SOIC-ren2
click to zoom

PVD1352NSPBF Details

  • Manufacturer Part Number:

    PVD1352NSPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE PACKAGE-8

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.005 A

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    4000 V

  • Number of Elements:

    1

  • On-State Current-Max:

    0.55 A

  • On-state Resistance-Max:

    1.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.9 mm

  • Overall Length:

    9.4 mm
