PVDZ172NSPBF - Infineon

Description: Infineon, PVDZ172NSPBF MOSFET Output Phototransistor, Surface Mount, 8-Pin DIP

Download PVDZ172NSPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

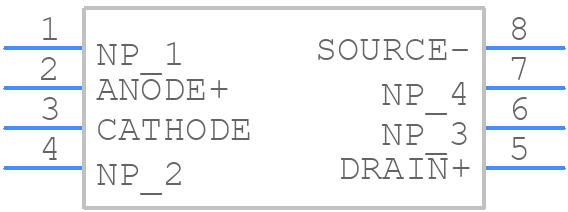

PVDZ172NSPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
PVDZ172NSPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PVDZ172NSPBF -SMD
click to zoom
3D Models
PVDZ172NSPBF - Infineon - 3D model - Small Outline Packages - PVDZ172NSPBF -SMD
click to zoom

PVDZ172NSPBF Details

  • Manufacturer Part Number:

    PVDZ172NSPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.01 A

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    4000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    1.5 A

  • On-state Resistance-Max:

    0.25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.9 mm

  • Overall Length:

    9.4 mm

  • Terminal Finish:

    Matte Tin (Sn)

PVDZ172NSPBF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PVDZ172NSPBF is a 5-pin SOT23 package with a 1.6mm x 2.9mm body size. The recommended land pattern is available in the Infineon application note AN2013-01.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of less than 1 ohm.
  • The maximum junction temperature for the PVDZ172NSPBF is 150°C. It is recommended to keep the junction temperature below 125°C for reliable operation.
  • Yes, the PVDZ172NSPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The PVDZ172NSPBF has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it is recommended to add external protection circuits, such as a voltage supervisor or a reset IC, to ensure reliable operation in fault conditions.
