PVT322ASPBF - Infineon

Description: Infineon, PVT322ASPBF AC/DC Input, MOSFET Output Dual Optocoupler, Surface Mount, 8-Pin PDIP SMD

Download PVT322ASPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

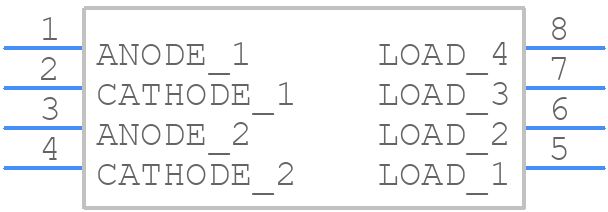

PVT322ASPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
PVT322ASPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PVT322ASPBF
click to zoom
3D Models
PVT322ASPBF - Infineon - 3D model - Small Outline Packages - PVT322ASPBF
click to zoom

PVT322ASPBF Details

  • Manufacturer Part Number:

    PVT322ASPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SMT, DIP-8

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.59

  • Additional Feature:

    UL RECOGNIZED, HIGH RELIABILITY

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Control Current:

    0.002 A

  • Forward Current-Max:

    0.025 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    4000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • On-State Current-Max:

    0.17 A

  • On-state Resistance-Max:

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.42 mm

  • Overall Length:

    9.4 mm

  • Terminal Finish:

    Matte Tin (Sn)
