For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The recommended soldering conditions for PVT322SPBF are: peak temperature 260°C, soldering time 10-30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point above 217°C.
To prevent ESD damage, it is recommended to handle the device in an ESD-protected environment, use ESD-protective packaging, and follow proper grounding procedures during assembly.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and increased risk of device failure. It is essential to operate the device within the specified operating conditions to ensure optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PVT322SPBF Overview

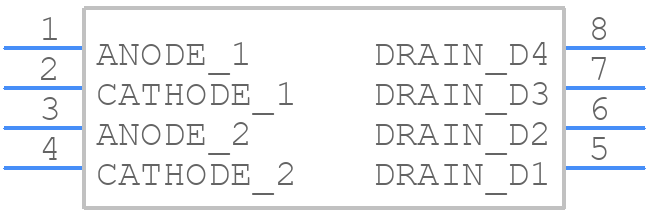

Use the download button to access the PVT322SPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PVT32,
or try a keyword search, such as Solid State Relays
