PWR1546AC - Murata Electronics

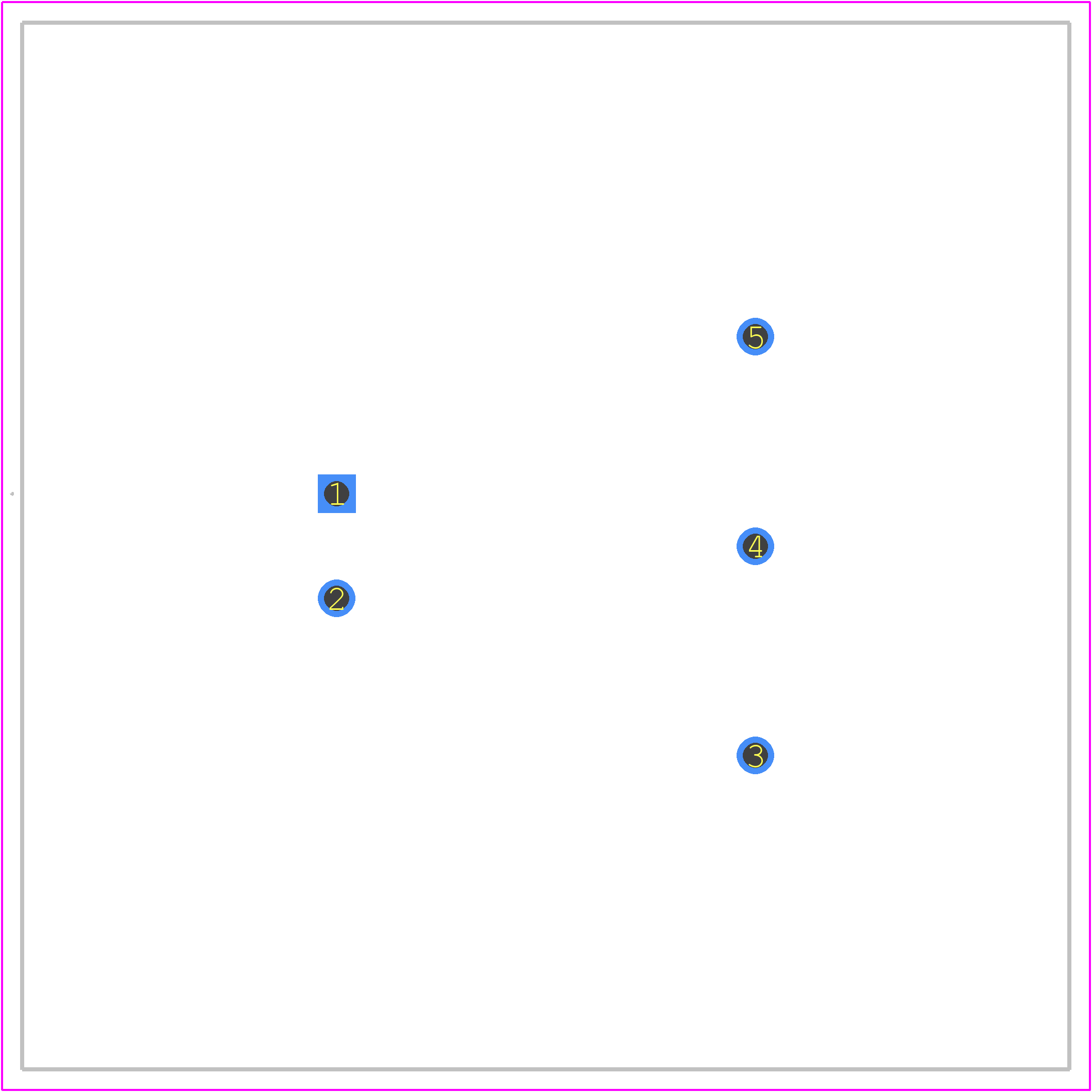

PWR1546AC Details

• Manufacturer Part Number:

  PWR1546AC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  MODULE-5

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Factory Lead Time:

  36 Weeks

• Date Of Intro:

  2020-06-05

• Manufacturer:

  Murata Manufacturing Co Ltd

• YTEOL:

  0

• Additional Feature:

  -15V ADDITIONAL OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  60%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  S-MDMA-T5

• Length:

  50.8 mm

• Line Regulation-Max:

  0.02%

• Load Regulation-Max:

  0.1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  0.167 A

• Output Voltage-Max:

  15.15 V

• Output Voltage-Min:

  14.85 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,5LEAD,.8

• Package Shape:

  SQUARE

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0003535 Vrms

• Seated Height-Max:

  10.16 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  DUAL

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  NO

• Width:

  50.8 mm
