Bourns recommends a PCB layout with a solid ground plane underneath the inductor, and a minimum of 1 oz copper thickness to minimize losses. Additionally, keep the inductor away from other components and traces to reduce electromagnetic interference.
Consider factors such as the operating frequency, current rating, and inductance value required for your application. Also, review the inductor's temperature rating, saturation current, and DC resistance to ensure it meets your design requirements.
The PWR163S-25-4700J has an operating temperature range of -40°C to +125°C, with a maximum storage temperature of +150°C.
The PWR163S-25-4700J is a commercial-grade inductor, but Bourns offers other inductors with higher reliability and safety ratings, such as the PWR163S-25-4700J-H or PWR163S-25-4700J-Q, which meet specific industry standards for high-reliability or safety-critical applications.
Use shielding techniques, such as a mu-metal shield or a ferrite bead, to contain the magnetic field. Also, consider using a common-mode choke or a differential-mode filter to reduce EMI emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR163S-25-4700J Overview

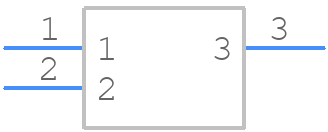

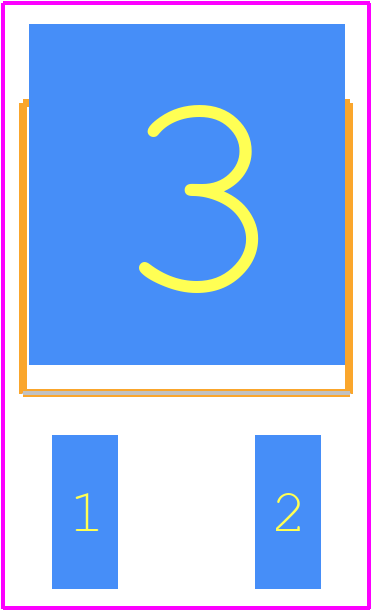

Use the download button to access the PWR163S-25-4700J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR16,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
