Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low thermal resistance, and minimal electromagnetic interference (EMI).
Proper cooling can be achieved by providing adequate airflow, using a heat sink or thermal interface material, and ensuring the inductor is not obstructed by other components. Bourns also recommends following their thermal management guidelines for optimal performance.
While the datasheet specifies a rated voltage of 25V, the maximum allowable voltage is typically 1.5 to 2 times the rated voltage. However, it's essential to consult with Bourns or a qualified engineer to determine the safe operating voltage for your specific application.
When selecting an inductor, consider factors such as inductance value, current rating, DC resistance, and physical size. Bourns provides a product selection guide and application notes to help engineers choose the right inductor for their specific application.
Bourns inductors are designed to meet or exceed industry standards for reliability and lifespan. The PWR163S-25-47R0J has a typical lifespan of 10 to 20 years, depending on operating conditions. Consult Bourns' reliability and quality documentation for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR163S-25-47R0J Overview

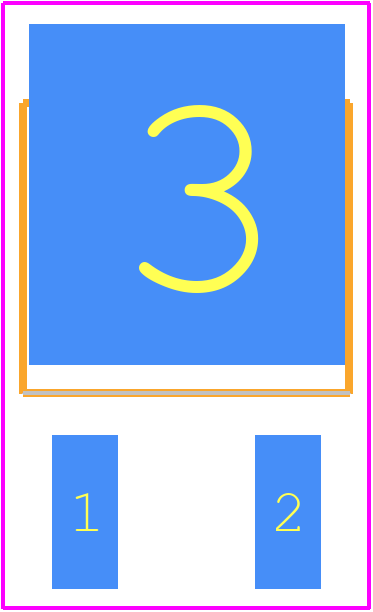

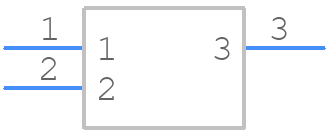

Use the download button to access the PWR163S-25-47R0J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR16,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
