A good PCB layout for the PWR163S-25-50R0J would involve keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output leads. It's also recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the PWR163S-25-50R0J. Additionally, ensure good airflow, use a heat sink if necessary, and avoid exceeding the maximum operating temperature of 125°C.
The PWR163S-25-50R0J can withstand surge currents up to 100 A for 1 ms, but it's recommended to limit the surge current to 50 A for 1 ms to ensure reliable operation.
Yes, the PWR163S-25-50R0J is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibrations.
To troubleshoot issues with the PWR163S-25-50R0J, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check for noise and oscillations, and consult the datasheet for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR163S-25-50R0J Overview

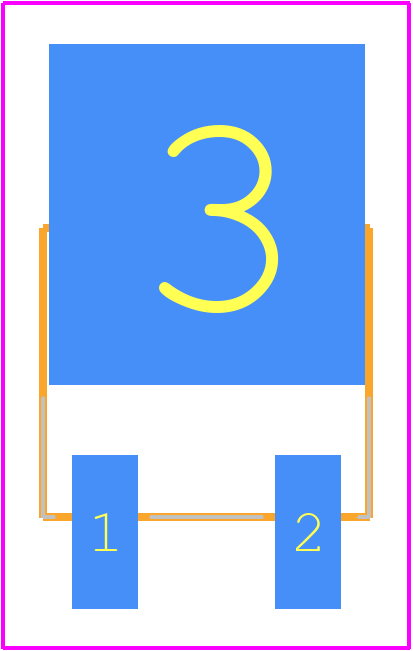

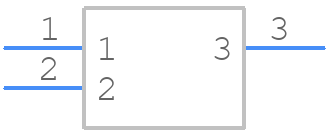

Use the download button to access the PWR163S-25-50R0J schematic symbol, PCB footprint, and 3D model.
