Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
Proper cooling can be achieved by providing adequate airflow, using a heat sink or thermal interface material, and ensuring the inductor is mounted away from other heat-generating components. Bourns also provides thermal derating guidelines in the datasheet.
While the datasheet specifies a maximum rated voltage, it's essential to consider the voltage stress during switching, surge, and fault conditions. Bourns recommends consulting their application notes and design guides for guidance on voltage stress and derating.
When selecting an inductor, consider factors such as operating frequency, current rating, inductance value, DC resistance, and physical size. Bourns provides a range of inductors with different characteristics, and their application engineers can also provide guidance on selection.
Bourns inductors are designed to meet high reliability standards, with a typical lifespan of 10-20 years or more, depending on the application and operating conditions. However, it's essential to follow proper storage, handling, and installation procedures to ensure reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR263S-20-15R0J Overview

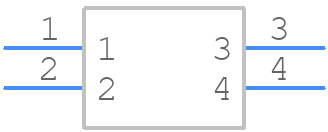

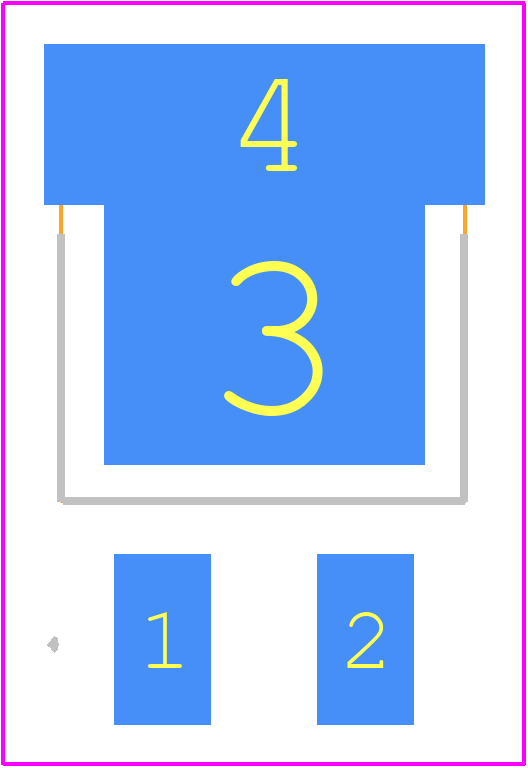

Use the download button to access the PWR263S-20-15R0J schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR26,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
