Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low thermal resistance, and minimal parasitic inductance.
To select the correct current rating, consider the maximum current required by your load, as well as any potential inrush currents or surges. Also, ensure that the chosen current rating is within the recommended operating range to avoid overheating and ensure reliability.
The derating curve for PWR263S-20-2R50F can be found in the datasheet or in Bourns' application notes. It shows how the resistor's power rating decreases as the ambient temperature increases. Ensure that your design takes into account the derated power rating to avoid overheating and ensure reliability.
While the PWR263S-20-2R50F is primarily designed for DC or low-frequency applications, it can be used in high-frequency applications with caution. Consider the resistor's self-resonant frequency, parasitic inductance, and capacitive effects, which may impact performance. Consult Bourns' application notes or contact their technical support for guidance.
Bourns provides reliability data and failure rate expectations in their datasheets or reliability reports. The PWR263S-20-2R50F is designed to meet industry-standard reliability requirements, such as MIL-STD-202. However, it's essential to consult the specific reliability data and consider the operating conditions, environmental factors, and design requirements to ensure the resistor meets your application's reliability needs.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR263S-20-2R50F Overview

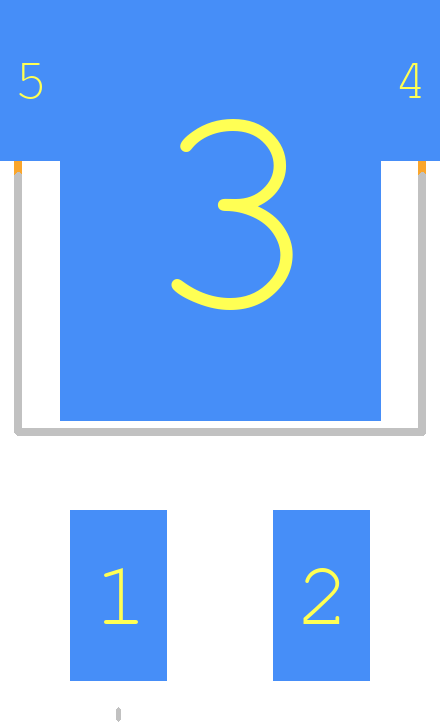

Use the download button to access the PWR263S-20-2R50F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR26,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
