Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low thermal resistance, and minimal electromagnetic interference (EMI).
To ensure the device operates within the specified temperature range, it's crucial to provide adequate heat sinking, consider thermal interface materials, and maintain a safe distance from heat sources. Additionally, consider the device's power rating, ambient temperature, and airflow when designing the system.
Bourns recommends following standard ESD precautions when handling the PWR263S-35-4R00F, such as using an ESD wrist strap, anti-static bags, and work surfaces. It's also essential to follow proper soldering and desoldering techniques to prevent damage.
The PWR263S-35-4R00F is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. It's essential to consult with Bourns and relevant industry standards to ensure the device meets the specific requirements of the application.
Common failure modes for the PWR263S-35-4R00F include overheating, overvoltage, and overcurrent. To mitigate these risks, ensure proper thermal management, voltage regulation, and current limiting. Additionally, consider implementing fault detection and protection mechanisms in the system design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR263S-35-4R00F Overview

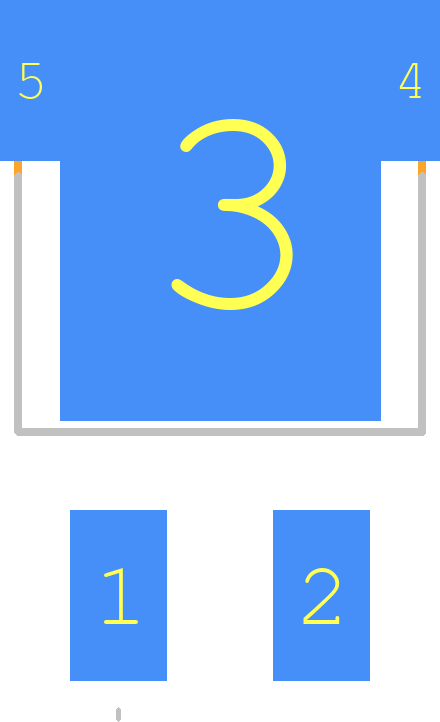

Use the download button to access the PWR263S-35-4R00F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR26,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
