Bourns provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
To prevent damage during assembly and soldering, follow the recommended soldering profile, use a soldering iron with a temperature-controlled tip, and avoid applying excessive force or pressure on the component. Additionally, ensure the PCB is designed with adequate thermal relief and clearance around the component.
Operating the PWR263S-35-R050J outside its recommended temperature range can lead to reduced performance, decreased lifespan, and potential failure. It's essential to ensure the component is operated within its specified temperature range to maintain its electrical characteristics and reliability.
Handle the component by its body or pins, avoiding touching the leads or electrical contacts. Store the component in its original packaging or an ESD-safe container, and follow proper ESD handling and storage procedures to prevent damage.
Bourns provides reliability and durability data for their components, including the PWR263S-35-R050J. Engineers can expect a high level of reliability and durability from this component, making it suitable for demanding applications. However, it's essential to review the component's specifications and consult with Bourns' technical support for specific application requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PWR263S-35-R050J Overview

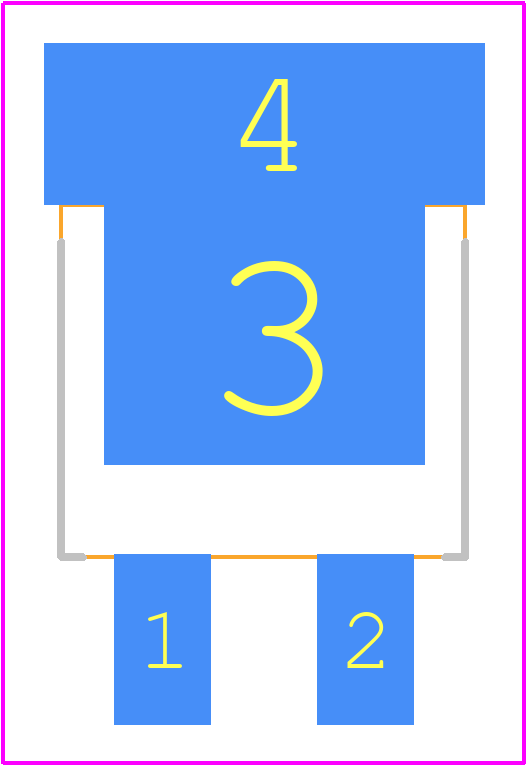

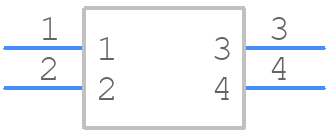

Use the download button to access the PWR263S-35-R050J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PWR26,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
