- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PX-84LCC
- Part Number PX-84LCC
- Manufacturer Kycon
- Pin Count 84
- Part Category Connector
- Package Category Other

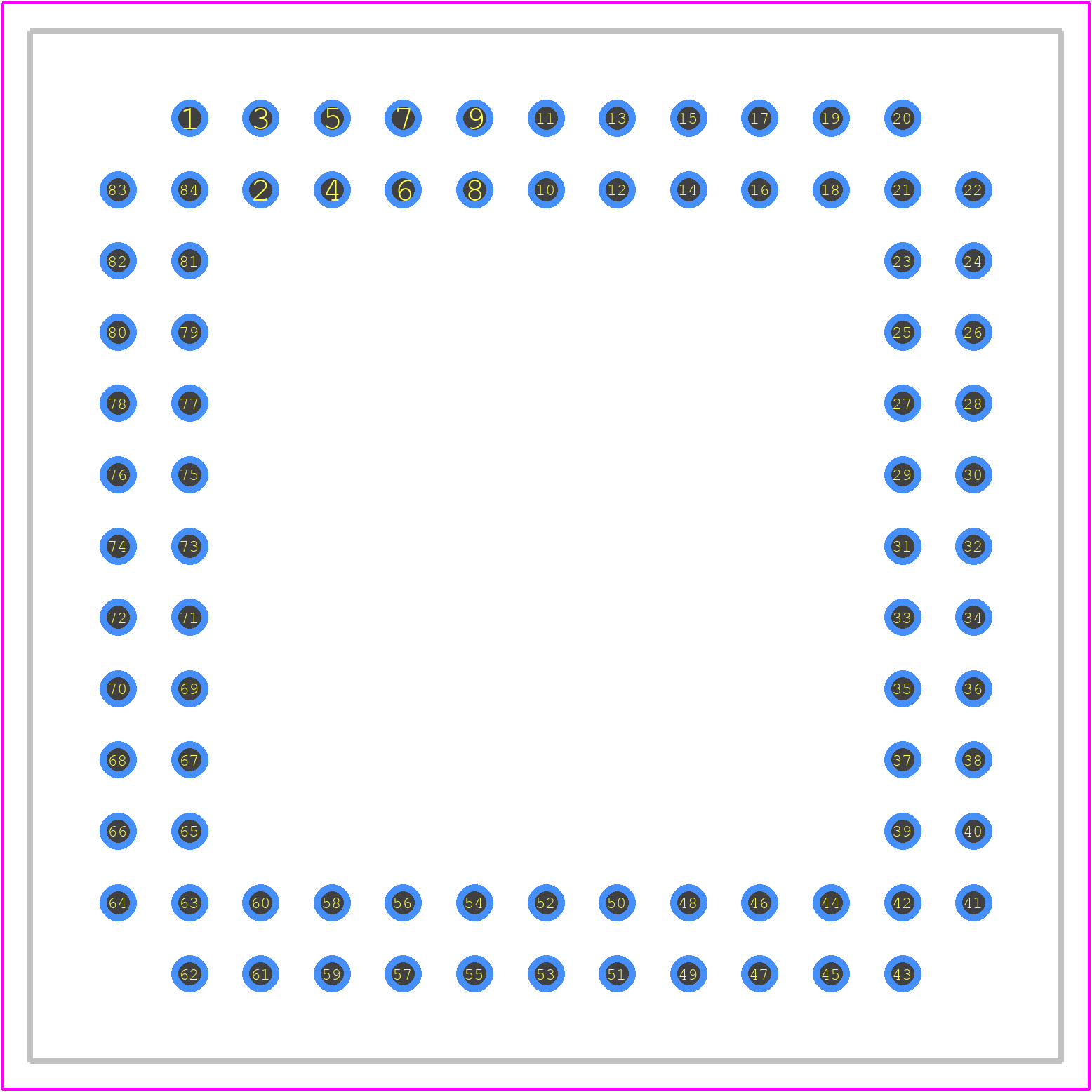

- Footprint Name Other - PX-84LCC-2
- Released Date Jun 9, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PX-84LCC Details
-
Manufacturer Part Number:
PX-84LCC
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Reach Compliance Code:
Unknown
-
Manufacturer:
Kycon Inc
-
Additional Feature:
STANDARD: UL 94V-0
-
Contact Finish Mating:
TIN OVER NICKEL
-
Contact Finish Termination:
TIN OVER NICKEL
-
Device Socket Type:
IC SOCKET
-
Device Type Used On:
PLCC84
-
Housing Material:
POLYBUTYLENE TEREPHTHALATE PLASTIC
Trust Checks
Expert Contribution
System Verified
Community Approved
PX-84LCC Overview
Use the download button to access the PX-84LCC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX-84,
or try a keyword search, such as Sockets and Chip Carriers
