PX0413/02S/PC - Bulgin

Description: 2 (Power) Position Circular Connector Receptacle, Female Sockets Solder

Download PX0413/02S/PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PX0413/02S/PC - Bulgin - PCB symbol
click to zoom
PCB Footprints

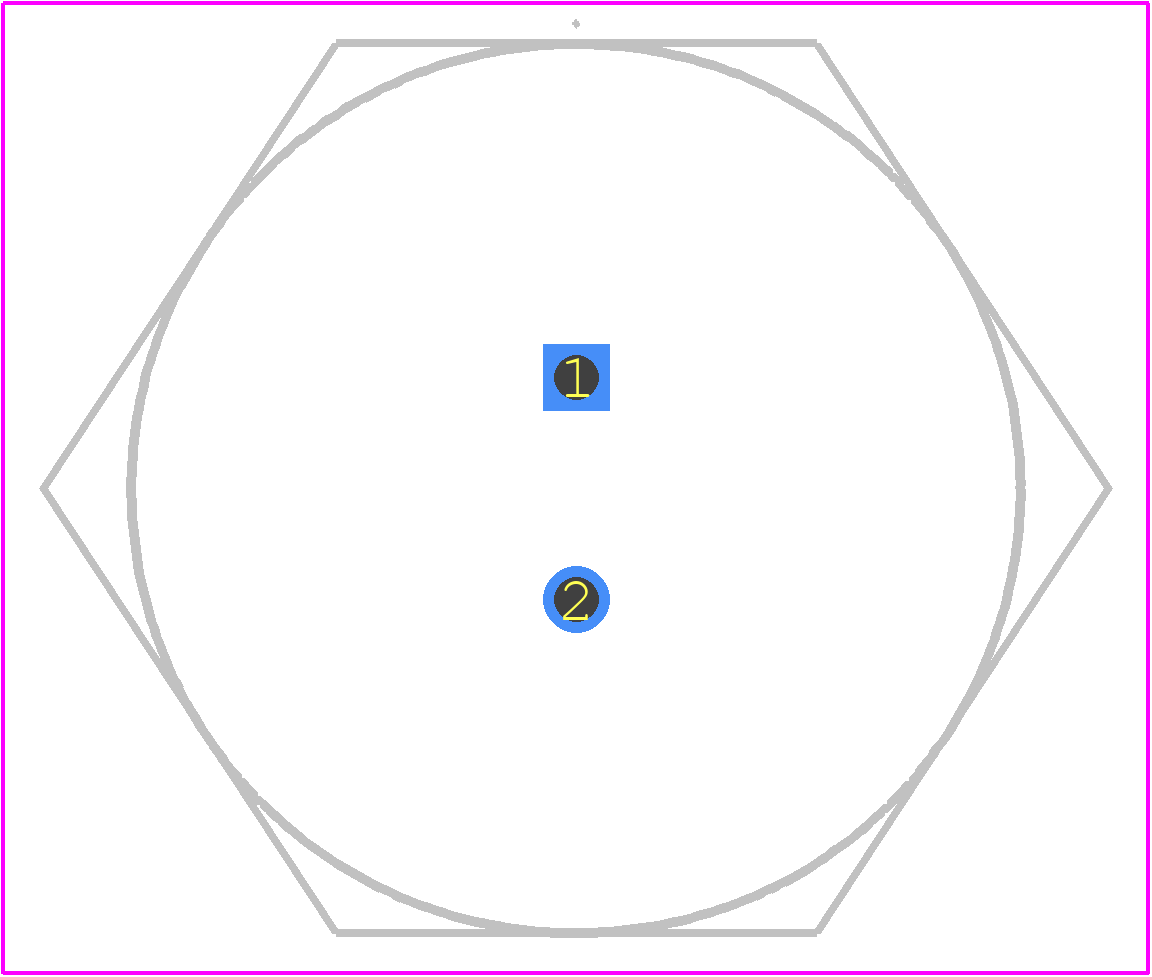

PX0413/02S/PC - Bulgin PCB footprint - Other - Other - PX0413/02S/PC-3
click to zoom
3D Models
PX0413/02S/PC - Bulgin - 3D model - Other - PX0413/02S/PC-3
click to zoom

PX0413/02S/PC Details

  • Manufacturer Part Number:

    PX0413/02S/PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    7.85

  • Additional Feature:

    STANDARD: VDE

  • Body Depth:

    0.823 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • Insulator Material:

    POLYAMIDE

  • Mains Connector Rating:

    8A, 250VAC/DC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    2

PX0413/02S/PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the PX0413/02S/PC connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, transportation, and aerospace.
  • Yes, the PX0413/02S/PC connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The mating cycle life of the PX0413/02S/PC connector is typically 500 to 1000 cycles, depending on the application and environmental conditions.
  • The PX0413/02S/PC connector is designed to be compatible with other manufacturers' connectors that meet the same industry standards, such as IEC 61076-2-101.
