PX0413/04S/PC - Bulgin

Description: Front Panel Mount

Download PX0413/04S/PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PX0413/04S/PC - Bulgin - PCB symbol
click to zoom
PCB Footprints

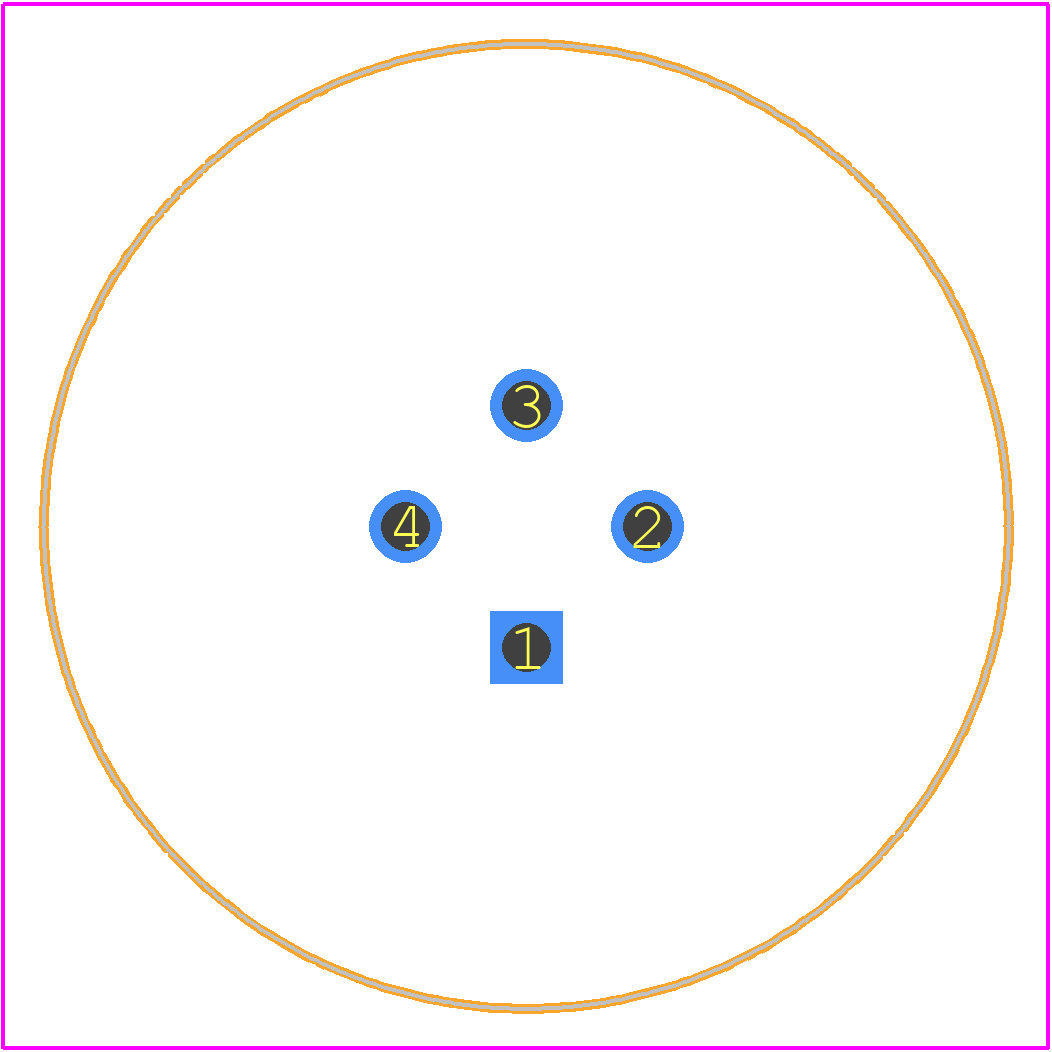

PX0413/04S/PC - Bulgin PCB footprint - Other - Other - PX0413/04S/PC
click to zoom
3D Models
PX0413/04S/PC - Bulgin - 3D model - Other - PX0413/04S/PC
click to zoom

PX0413/04S/PC Details

  • Manufacturer Part Number:

    PX0413/04S/PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: VDE

  • Body Depth:

    0.823 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • Mains Connector Rating:

    5A, 125VAC/DC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    4

PX0413/04S/PC Frequently Asked Questions (FAQs)

  • The recommended torque for the PX0413/04S/PC connector is 0.5 Nm to 1.5 Nm, as specified by Bulgin.
  • Yes, the PX0413/04S/PC connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • The operating temperature range of the PX0413/04S/PC connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the PX0413/04S/PC connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The mating cycle life of the PX0413/04S/PC connector is 500 cycles, as specified by Bulgin.
