- Part Number PX0413/12P/PC
- Manufacturer Bulgin
- Pin Count 12
- Part Category Connector
- Package Category Other
- Footprint Name Other - PX0413/12P/PC
- Released Date Apr 23, 2023
- Last Modified Date May 17, 2024 12:14 PM UTC
- Pinout / Pin List Click Here (Member Only)
PX0413/12P/PC Details
-
Manufacturer Part Number:
PX0413/12P/PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Bulgin
-
YTEOL:
6.9
-
Additional Feature:
STANDARD: VDE
-
Body Depth:
0.823 inch
PX0413/12P/PC Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5 Nm to 1.5 Nm (5-13.5 lbf-in) for the screw threads, and 0.2 Nm to 0.5 Nm (1.8-4.5 lbf-in) for the nut and bolt.
-
Yes, the connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures. However, it's essential to follow the recommended installation and sealing procedures to ensure IP67 rating.
-
Yes, the connector is designed to withstand vibrations and shocks. However, it's crucial to follow the recommended torque values and ensure proper installation to prevent loosening or damage.
-
The operating temperature range is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
-
Yes, the PX0413/12P/PC connector is part of the Bulgin PX series and is compatible with other connectors in the same series. However, it's essential to verify the specific connector type and configuration to ensure compatibility.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PX0413/12P/PC Overview

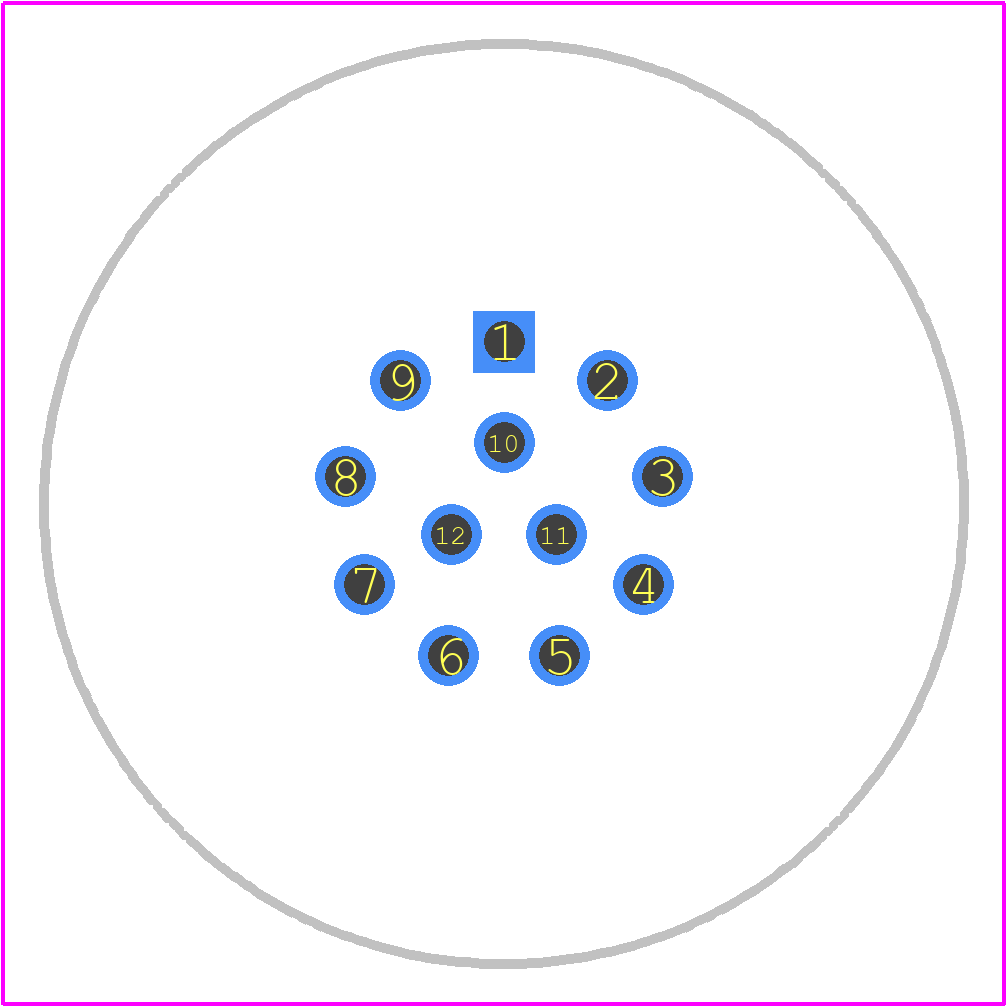

Use the download button to access the PX0413/12P/PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX041,
or try a keyword search
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
