PX0575/10/PC - Bulgin

Description: Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle

Download PX0575/10/PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PX0575/10/PC - Bulgin - PCB symbol
click to zoom
PCB Footprints

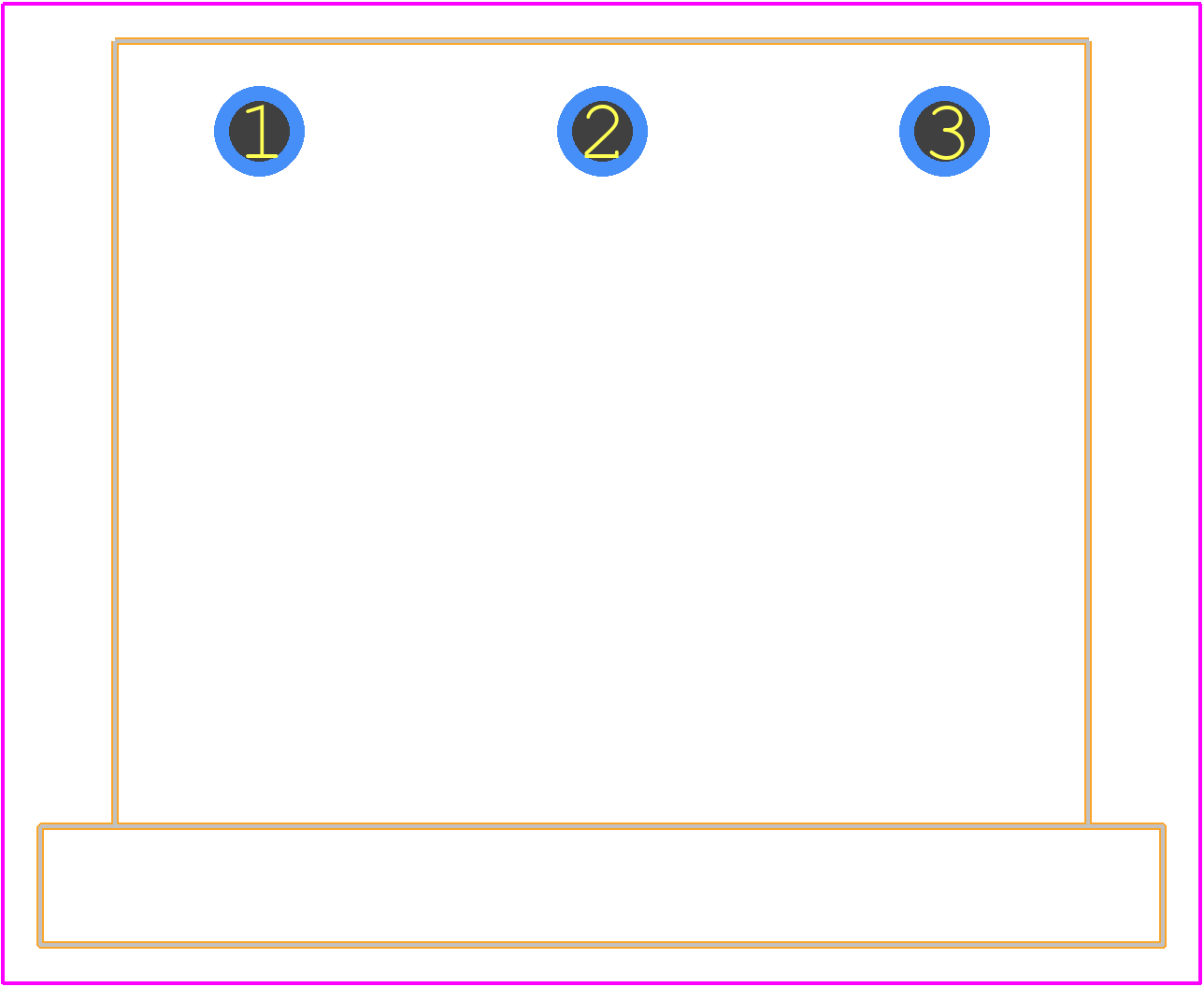

PX0575/10/PC - Bulgin PCB footprint - Other - Other - PX0575/10/PC-2
click to zoom
3D Models
PX0575/10/PC - Bulgin - 3D model - Other - PX0575/10/PC-2
click to zoom

PX0575/10/PC Details

  • Manufacturer Part Number:

    PX0575/10/PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC/EN 60320-1/C14; UL94V-0; CSA; VDE

  • Body/Shell Style:

    PLUG

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10/15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3
