PX0580/PC/12132 - Bulgin

Description: AC Power Entry Modules PCB FLANGE R/M INLET P.C. SPILLS,W/COVER

Download PX0580/PC/12132 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PX0580/PC/12132 - Bulgin - PCB symbol
click to zoom
PCB Footprints

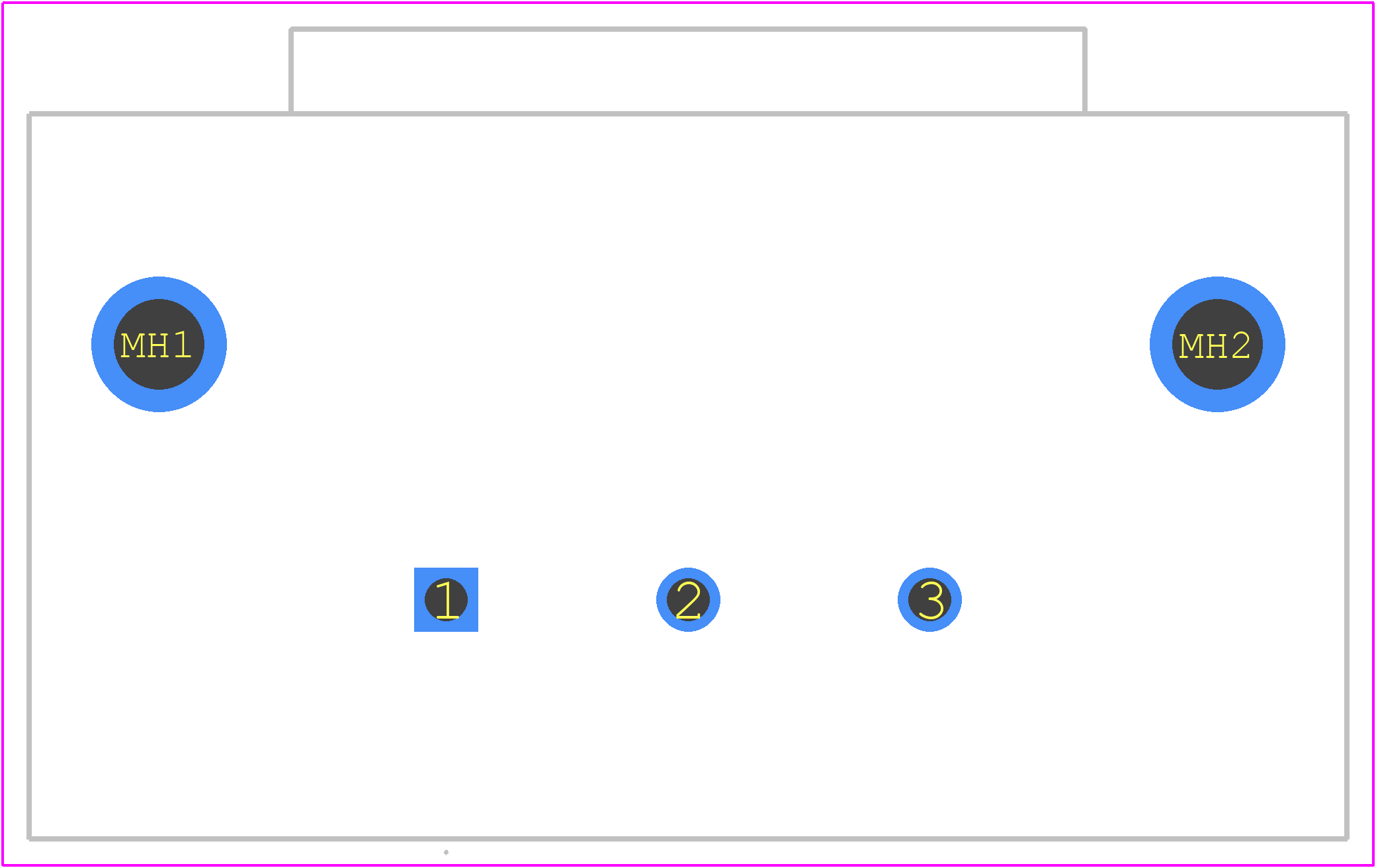

PX0580/PC/12132 - Bulgin PCB footprint - Other - Other - PX0580/PC/12132-2
click to zoom

PX0580/PC/12132 Details

  • Manufacturer Part Number:

    PX0580/PC/12132

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    7.2

  • Additional Feature:

    UL 94V-0; CSA; VDE

  • Body Breadth:

    1.094 inch

  • Body Depth:

    1.204 inch

  • Body Length:

    1.96 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Coupling Type:

    SNAP

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mains Connector Rating:

    10A, 250 VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    ENEC

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

PX0580/PC/12132 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
  • Yes, the PX0580/PC/12132 is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to prevent damage or disconnection.
  • The PX0580/PC/12132 has an IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to consider additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
  • The operating temperature range for the PX0580/PC/12132 is -40°C to 125°C. However, it's essential to consider the specific application requirements and potential thermal stresses.
  • The PX0580/PC/12132 is designed to be compatible with other connectors that meet the IEC 61076-2-012 standard. However, it's recommended to verify compatibility and perform testing before using connectors from different manufacturers.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PX0580/PC/12132 Overview

Use the download button to access the PX0580/PC/12132 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PX058, or try a keyword search

About Bulgin

Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics. Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
