- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PX0580/PC
- Part Number PX0580/PC
- Manufacturer Bulgin
- Pin Count 3
- Part Category Connector
- Package Category Other

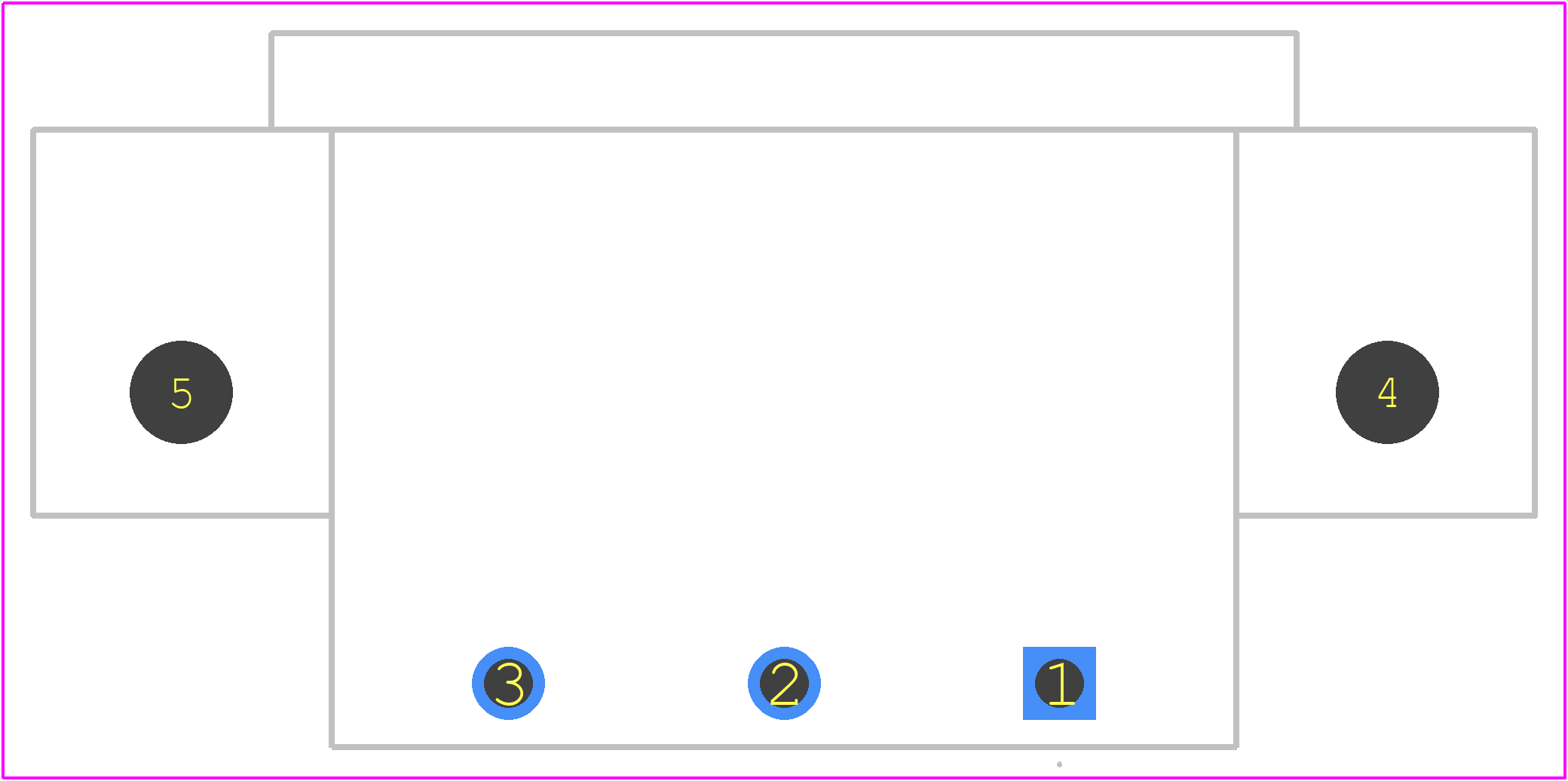

- Footprint Name Other - PX0580/PC-4
- Released Date Feb 22, 2019
- Last Modified Date Oct 24, 2024 11:47 AM UTC
- Pinout / Pin List Click Here (Member Only)
PX0580/PC Details
-
Manufacturer Part Number:
PX0580/PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Bulgin
-
YTEOL:
7.2
-
Additional Feature:
UL 94V-0; CSA; VDE
-
Body Breadth:
1.094 inch
PX0580/PC Frequently Asked Questions (FAQs)
-
The recommended torque for the PX0580/PC connector is 0.5-1.5 Nm (5-13.5 in-lbs).
-
Yes, the PX0580/PC connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and construction equipment.
-
Yes, the PX0580/PC connector is part of Bulgin's 400 series and is compatible with other connectors in the same series, allowing for flexibility in design and application.
-
The operating temperature range of the PX0580/PC connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
-
Yes, the PX0580/PC connector is designed to be resistant to harsh environments, including high humidity and exposure to chemicals, making it suitable for use in industrial, agricultural, and other demanding applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PX0580/PC Overview
Use the download button to access the PX0580/PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX058,
or try a keyword search, such as Mains Power Connectors
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
