- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PX0675/PC
- Part Number PX0675/PC
- Manufacturer Bulgin
- Pin Count 5
- Part Category Connector
- Package Category Other

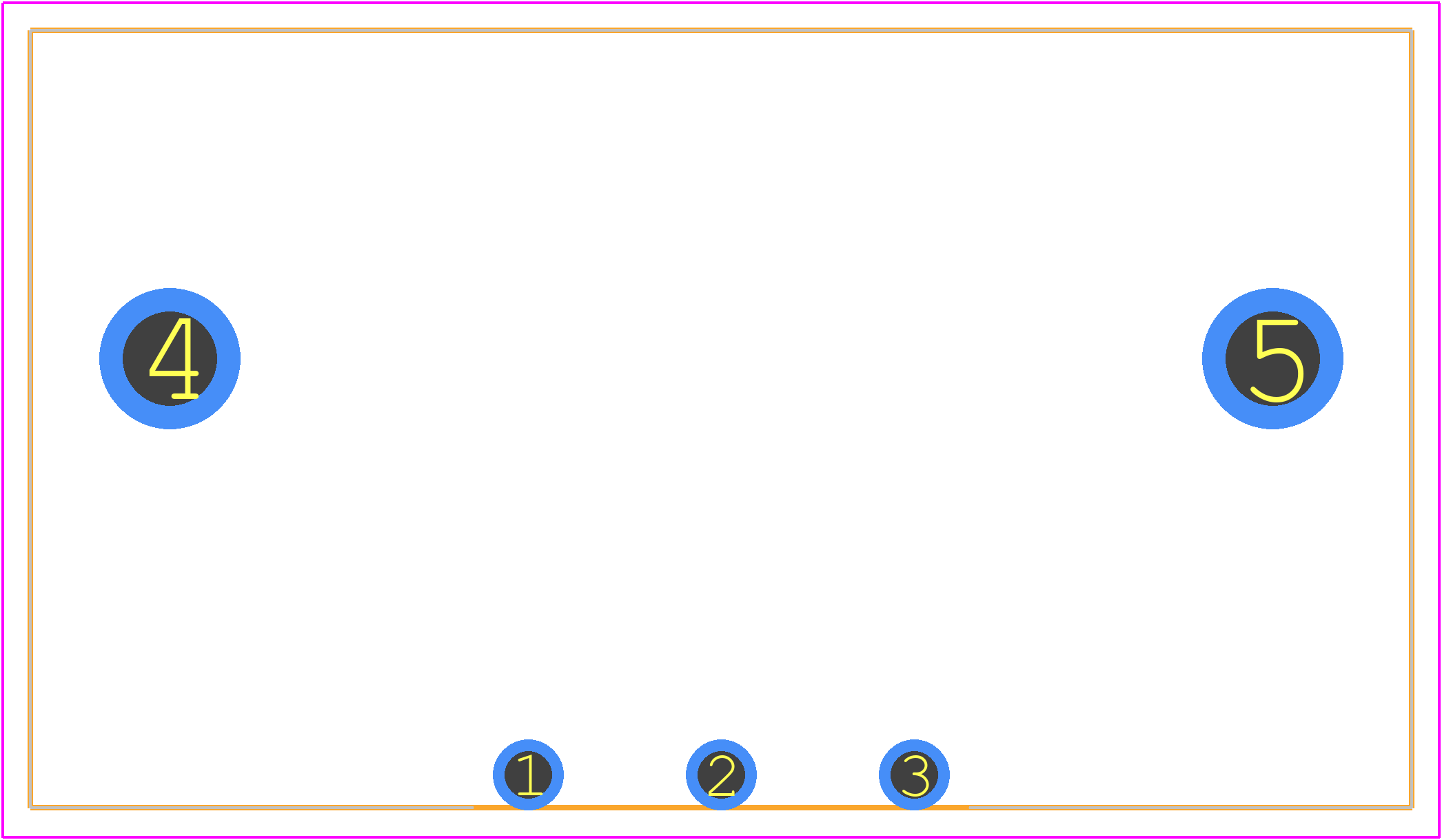

- Footprint Name Other - PX0675/PC-2
- Released Date Feb 19, 2019
- Last Modified Date May 23, 2024 2:56 PM UTC
- Pinout / Pin List Click Here (Member Only)
PX0675/PC Details
-
Manufacturer Part Number:
PX0675/PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Bulgin
-
YTEOL:
7.2
-
Additional Feature:
UL 94V-0; CSA; VDE
-
Body Breadth:
1.196 inch
PX0675/PC Frequently Asked Questions (FAQs)
-
The recommended torque for the PX0675/PC connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
-
Yes, the PX0675/PC connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
Yes, the PX0675/PC connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G acceleration.
-
The operating temperature range of the PX0675/PC connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the PX0675/PC connector meets the requirements of UL 1977 and CSA 22.2 No. 182.3 standards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PX0675/PC Overview
Use the download button to access the PX0675/PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX067,
or try a keyword search, such as Mains Power Connectors
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
