PX0707/S/09 - Bulgin

Description: Standard Circular Connector 9 POLE PCB SKT

Download PX0707/S/09 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PX0707/S/09 - Bulgin - PCB symbol
click to zoom
PCB Footprints

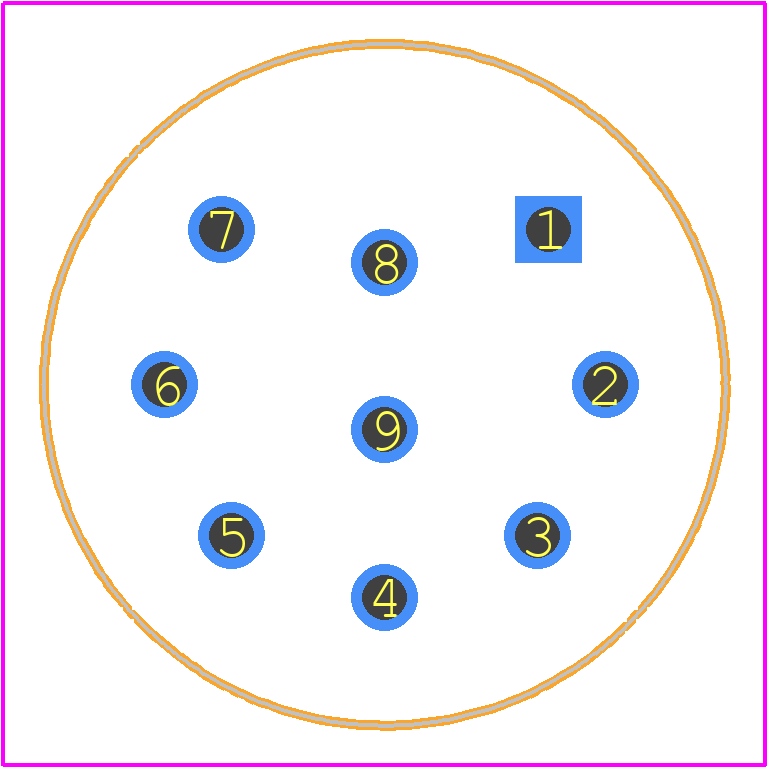

PX0707/S/09 - Bulgin PCB footprint - Other - Other - PX0707/S/09-5
click to zoom
3D Models
PX0707/S/09 - Bulgin - 3D model - Other - PX0707/S/09-5
click to zoom

PX0707/S/09 Details

  • Manufacturer Part Number:

    PX0707/S/09

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Bulgin

  • YTEOL:

    7

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A, 150VAC/DC

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    9

PX0707/S/09 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified by Bulgin's application notes.
  • Yes, the PX0707/S/09 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration, as per IEC 60068-2-6.
  • Yes, the PX0707/S/09 has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the PX0707/S/09 is -40°C to 125°C, as specified in the datasheet.
  • Yes, the PX0707/S/09 has a flexible cable clamp design that can accommodate cables with diameters ranging from 3.5 mm to 7.5 mm.
