PX0839/90 footprint, schematic symbol and 3D model by Bulgin

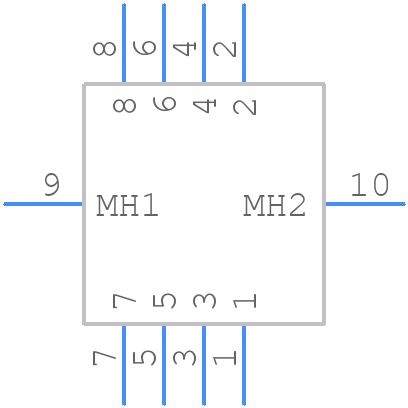

Symbol

click to zoom

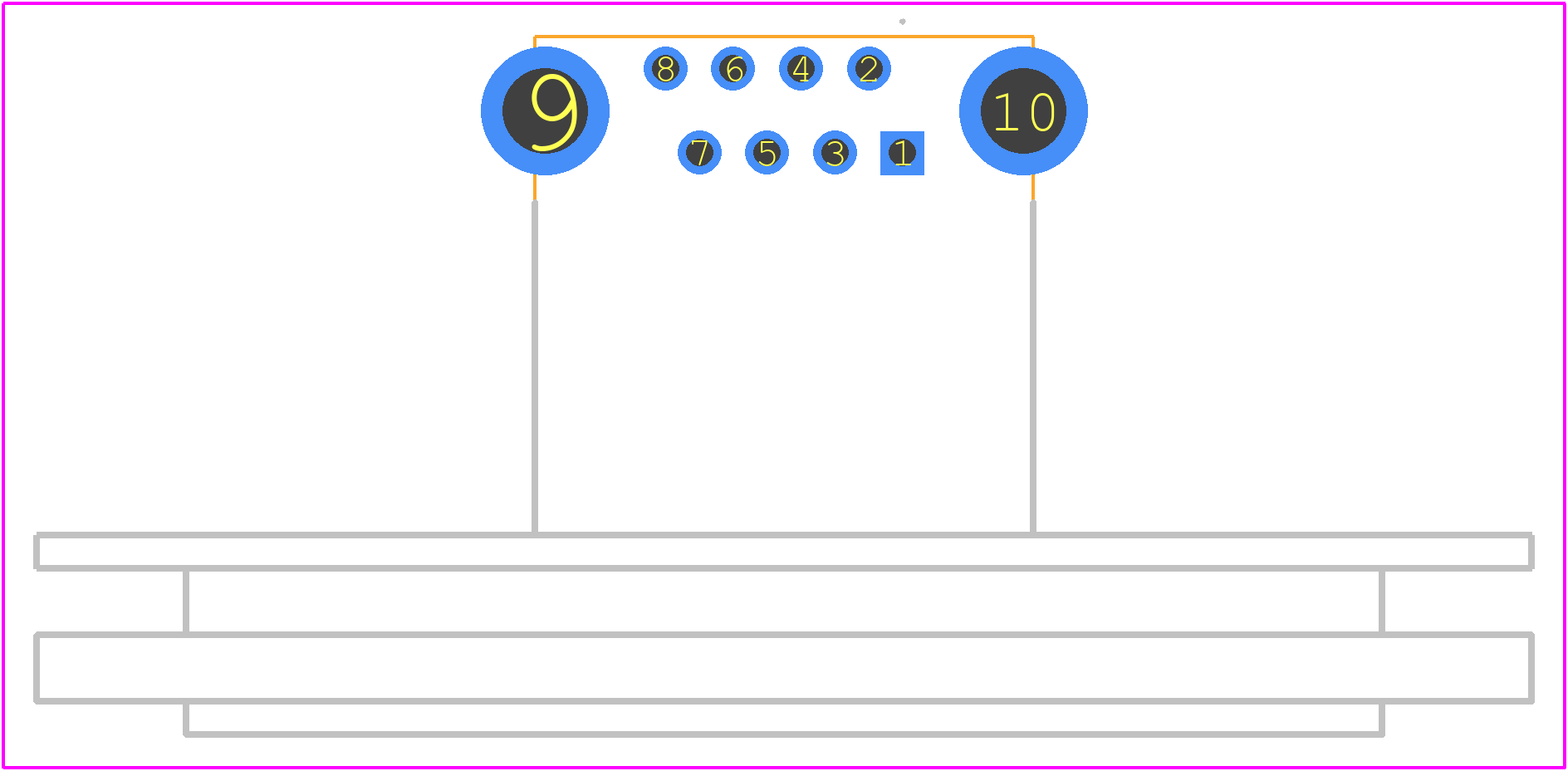

PCB Footprints

PX0839/90 - Bulgin PCB footprint - Other - Other - PX0839/90-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PX0839/90
Part Number PX0839/90
Manufacturer Bulgin
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - PX0839/90-2
Released Date Apr 25, 2024
Last Modified Date May 7, 2026 5:53 AM UTC
Pinout / Pin List Click Here (Member Only)

PX0839/90 Details

Manufacturer Part Number:
PX0839/90
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Bulgin
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

PX0839/90 Frequently Asked Questions (FAQs)

The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application and environmental conditions to determine the optimal torque value.
Yes, the PX0839/90 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments, but it's crucial to ensure proper mounting and secure connections.
To maintain the IP67 rating, ensure the connector is mated correctly, and the gasket is properly seated. Also, apply a suitable sealant or adhesive to the mating surfaces, and ensure the cable is properly secured to the connector.
The maximum operating temperature for the PX0839/90 is 125°C, but it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
The PX0839/90 is not designed for use in explosive atmospheres. If you need a connector for hazardous environments, consider Bulgin's ATEX-approved connectors, such as the 400 series.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PX0839/90 Overview

Use the download button to access the PX0839/90 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PX083, or try a keyword search, such as Telecom and Datacom Connectors

About Bulgin

Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics. Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
