- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PX0845/A
- Part Number PX0845/A
- Manufacturer Bulgin
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - PX0845/A
- Released Date Aug 26, 2021
- Last Modified Date May 17, 2024 12:14 PM UTC
- Pinout / Pin List Click Here (Member Only)
PX0845/A Details
-
Manufacturer Part Number:
PX0845/A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Bulgin
-
Connector Type:
USB CONNECTOR
-
Contact Finish Mating:
GOLD (30)
-
Contact Finish Termination:
GOLD
PX0845/A Frequently Asked Questions (FAQs)
-
The recommended torque for the PX0845/A's screw threads is 0.5 Nm to 1.5 Nm. Over-tightening can damage the threads, so it's essential to follow this guideline.
-
Yes, the PX0845/A is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
-
The PX0845/A is designed to be compatible with other connectors that meet the IEC 61076-2-011 standard. However, it's recommended to verify compatibility with the specific connector model and manufacturer before use.
-
The PX0845/A is rated for operation in temperatures ranging from -40°C to 125°C. Exceeding this temperature range may affect the connector's performance and lifespan.
-
The PX0845/A is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to follow the manufacturer's guidelines and take necessary precautions to ensure the connector's reliability and longevity.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PX0845/A Overview

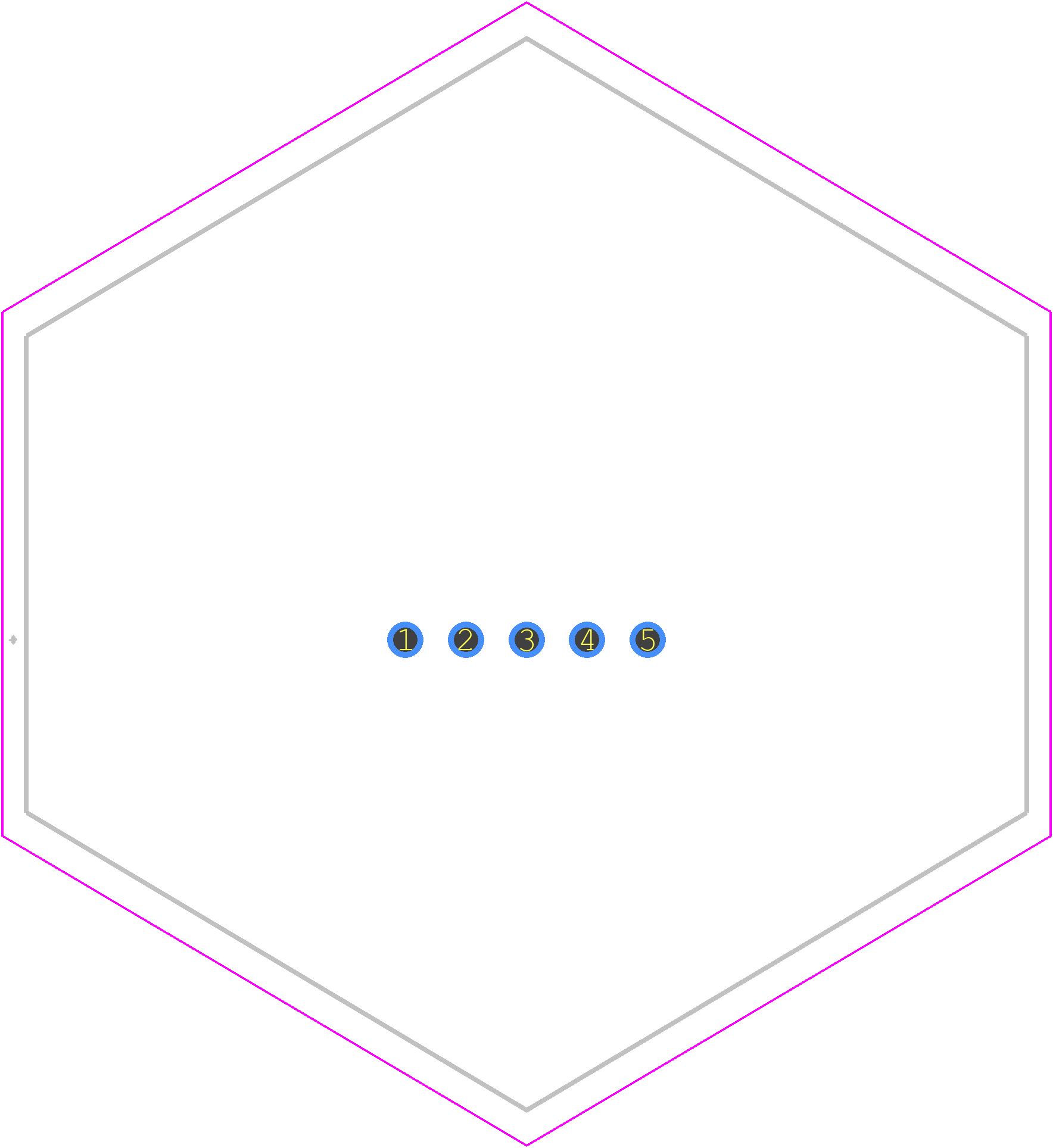

Use the download button to access the PX0845/A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PX084,
or try a keyword search, such as Telecom and Datacom Connectors
