PXD-M30-48WD12 - TDK Lambda

Description: DC-DC Converters, Power module type, Dual Output, Output: 30W, ?12V, Isolated type, Option: No Remote On/Off (Standard Version)

Download PXD-M30-48WD12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

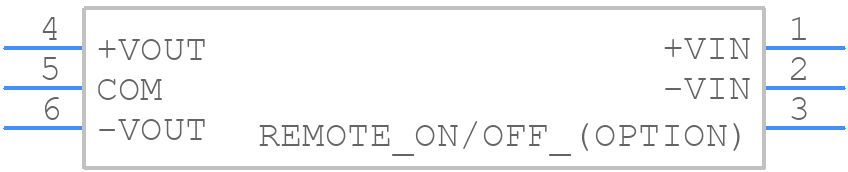

PXD-M30-48WD12 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
PXD-M30-48WD12 - TDK Lambda PCB footprint - Other - Other - PXD-M30-48WS05-2
click to zoom
3D Models
PXD-M30-48WD12 - TDK Lambda - 3D model - Other - PXD-M30-48WS05-2
click to zoom

PXD-M30-48WD12 Details

  • Manufacturer Part Number:

    PXD-M30-48WD12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXD-M30-48WD12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PXD-M30-48WD12 is -20°C to +80°C, with a derating of 2.5% per °C above 40°C.
  • Yes, the PXD-M30-48WD12 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000Hz, 2G acceleration, and 3 axes.
  • The MTBF rating for the PXD-M30-48WD12 is approximately 1,500,000 hours at 25°C, calculated according to MIL-HDBK-217F.
  • Yes, the PXD-M30-48WD12 is compliant with various safety standards, including UL60950-1, EN60950-1, and IEC60950-1.
  • Yes, the PXD-M30-48WD12 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C, non-condensing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXD-M30-48WD12 Overview

Use the download button to access the PXD-M30-48WD12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXD-M, or try a keyword search, such as Power Supply Modules
