PXD-M30-48WD15 - TDK Lambda

Description: DC-DC Converters, Power module type, Dual Output, Output: 30W, ?15V, Isolated type, Option: No Remote On/Off (Standard Version)

Download PXD-M30-48WD15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

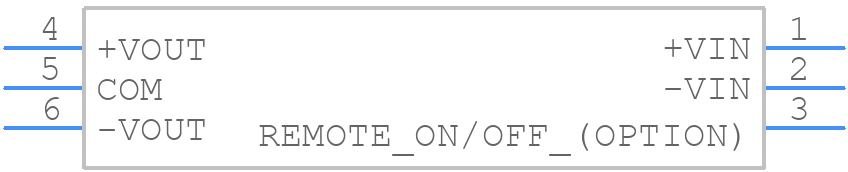

PXD-M30-48WD15 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
PXD-M30-48WD15 - TDK Lambda PCB footprint - Other - Other - PXD-M30-48WS05-2
click to zoom
3D Models
PXD-M30-48WD15 - TDK Lambda - 3D model - Other - PXD-M30-48WS05-2
click to zoom

PXD-M30-48WD15 Details

  • Manufacturer Part Number:

    PXD-M30-48WD15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXD-M30-48WD15 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PXD-M30-48WD15 is -20°C to +70°C, with a derating of 2.5% per degree above 40°C.
  • Yes, the PXD-M30-48WD15 is designed to operate in a humid environment, with a relative humidity of up to 95% non-condensing.
  • The MTBF rating for the PXD-M30-48WD15 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
  • Yes, the PXD-M30-48WD15 can be used in a redundant configuration, with multiple units connected in parallel to provide N+1 redundancy.
  • The maximum input surge current for the PXD-M30-48WD15 is 30A peak, for a duration of 10ms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXD-M30-48WD15 Overview

Use the download button to access the PXD-M30-48WD15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXD-M, or try a keyword search, such as Power Supply Modules
