PXD-M30-48WS05 - TDK Lambda

Description: The PXD-M series of medical and industrial DC-DC converters feature a wide 4:1 input range in a compact 2 x 1” (50.8 x 25mm) industry standard package.

Download PXD-M30-48WS05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

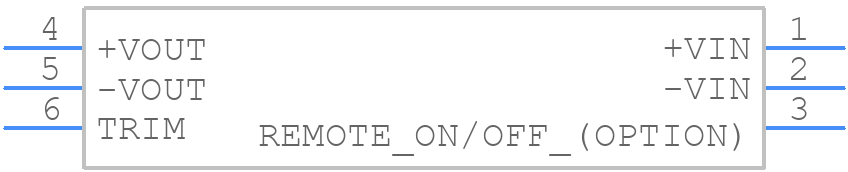

Symbol
PXD-M30-48WS05 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
PXD-M30-48WS05 - TDK Lambda PCB footprint - Other - Other - PXD-M30-48WS05-2
click to zoom
3D Models
PXD-M30-48WS05 - TDK Lambda - 3D model - Other - PXD-M30-48WS05-2
click to zoom

PXD-M30-48WS05 Details

  • Manufacturer Part Number:

    PXD-M30-48WS05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXD-M30-48WS05 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PXD-M30-48WS05 is -20°C to +70°C, with a derating of 2.5% per °C above 40°C.
  • Yes, the PXD-M30-48WS05 is designed to operate in a humid environment, but it's recommended to follow the derating guidelines for humidity levels above 60% RH.
  • The recommended input fuse rating for the PXD-M30-48WS05 is 2A slow-blow type, but it's recommended to consult the datasheet and application notes for specific fuse selection guidelines.
  • Yes, the PXD-M30-48WS05 can be paralleled for higher power output, but it's recommended to follow the application notes and guidelines for paralleling multiple units to ensure proper operation and reliability.
  • The typical efficiency of the PXD-M30-48WS05 is around 85-90% at full load, depending on the input voltage and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXD-M30-48WS05 Overview

Use the download button to access the PXD-M30-48WS05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXD-M, or try a keyword search, such as Power Supply Modules
