PXG-M15-24WD15 - TDK Lambda

Description: DC-DC Converters, Power module type, Dual Output, Output: 15W, ?15V, Isolated type, Option: No Remote On/Off (Standard Version)

Download PXG-M15-24WD15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

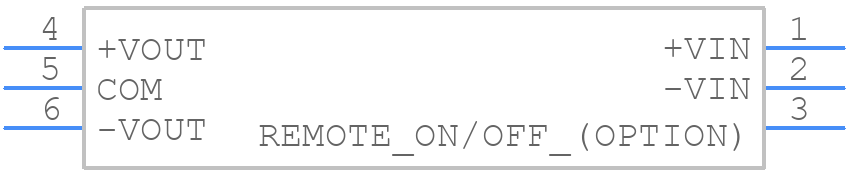

PXG-M15-24WD15 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

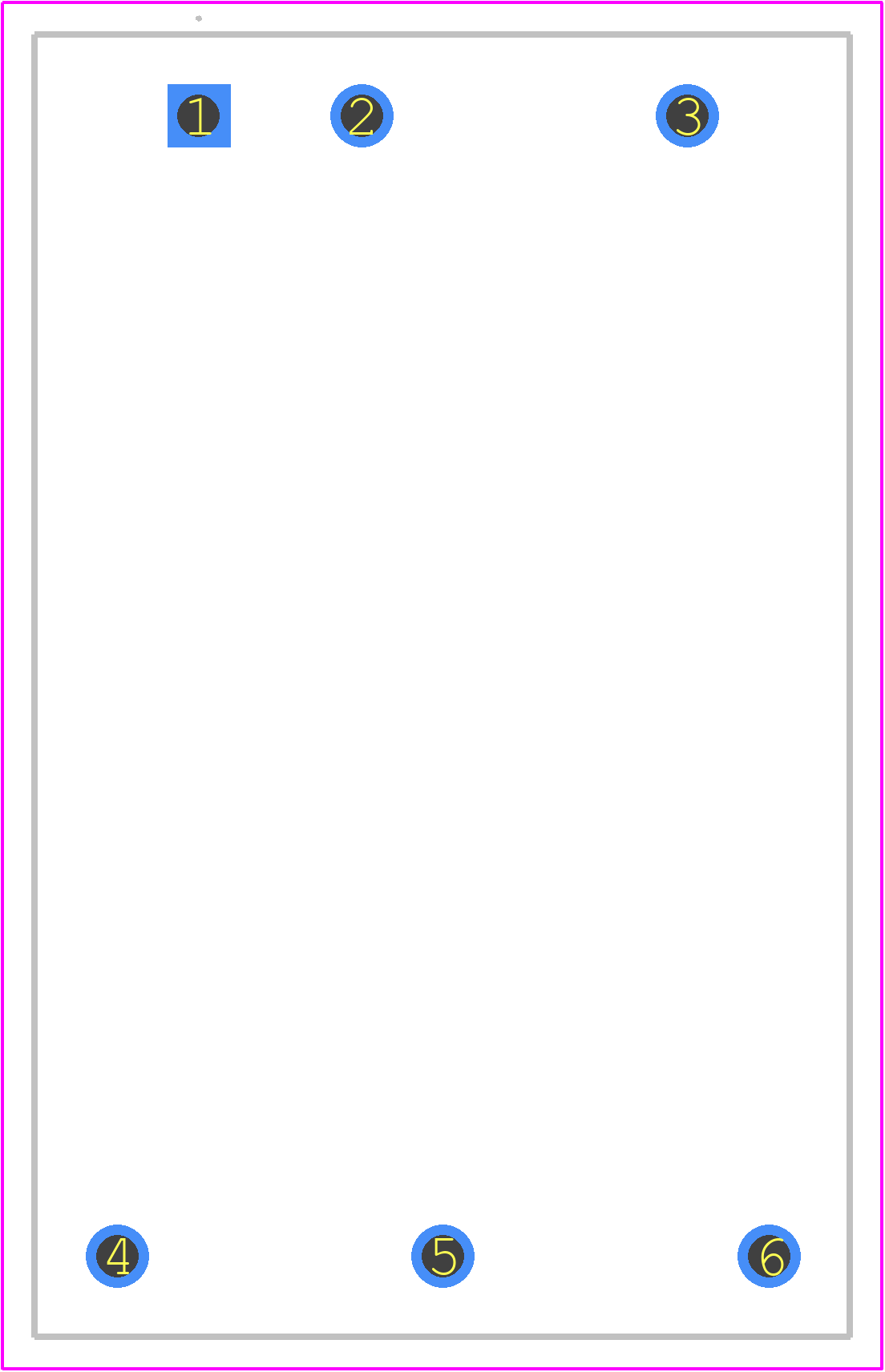

PXG-M15-24WD15 - TDK Lambda PCB footprint - Other - Other - PXG-M15-24WS24-2
click to zoom
3D Models
PXG-M15-24WD15 - TDK Lambda - 3D model - Other - PXG-M15-24WS24-2
click to zoom

PXG-M15-24WD15 Details

  • Manufacturer Part Number:

    PXG-M15-24WD15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-08-05

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXG-M15-24WD15 Frequently Asked Questions (FAQs)

  • The PXG-M15-24WD15 can operate from -20°C to +70°C, with derating above 50°C.
  • Yes, the PXG-M15-24WD15 is designed to operate up to 5000 meters (16,400 ft) above sea level.
  • The hold-up time for the PXG-M15-24WD15 is typically 10ms, ensuring that the output voltage remains stable during brief input power interruptions.
  • Yes, the PXG-M15-24WD15 is designed to meet the requirements for Class I, Division 2 hazardous locations, making it suitable for use in industrial environments with explosive atmospheres.
  • Yes, the PXG-M15-24WD15 can be paralleled to increase the output power, but it's recommended to consult with TDK-Lambda Corporation or a qualified engineer to ensure proper configuration and operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXG-M15-24WD15 Overview

Use the download button to access the PXG-M15-24WD15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXG-M, or try a keyword search, such as Power Supply Modules
