Part Image

PXG-M20-24WS05 - TDK Lambda

Description: DC-DC Converters, Power module type, Output: 20W, 5V, Isolated type, Option: No Remote On/Off (Standard Version)

Download PXG-M20-24WS05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

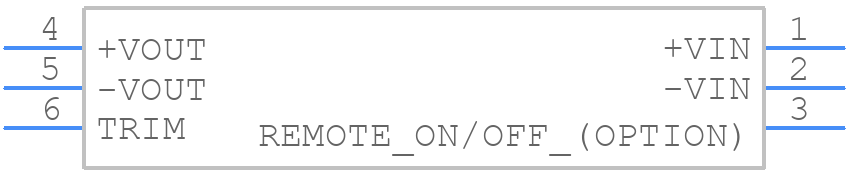

PXG-M20-24WS05 - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

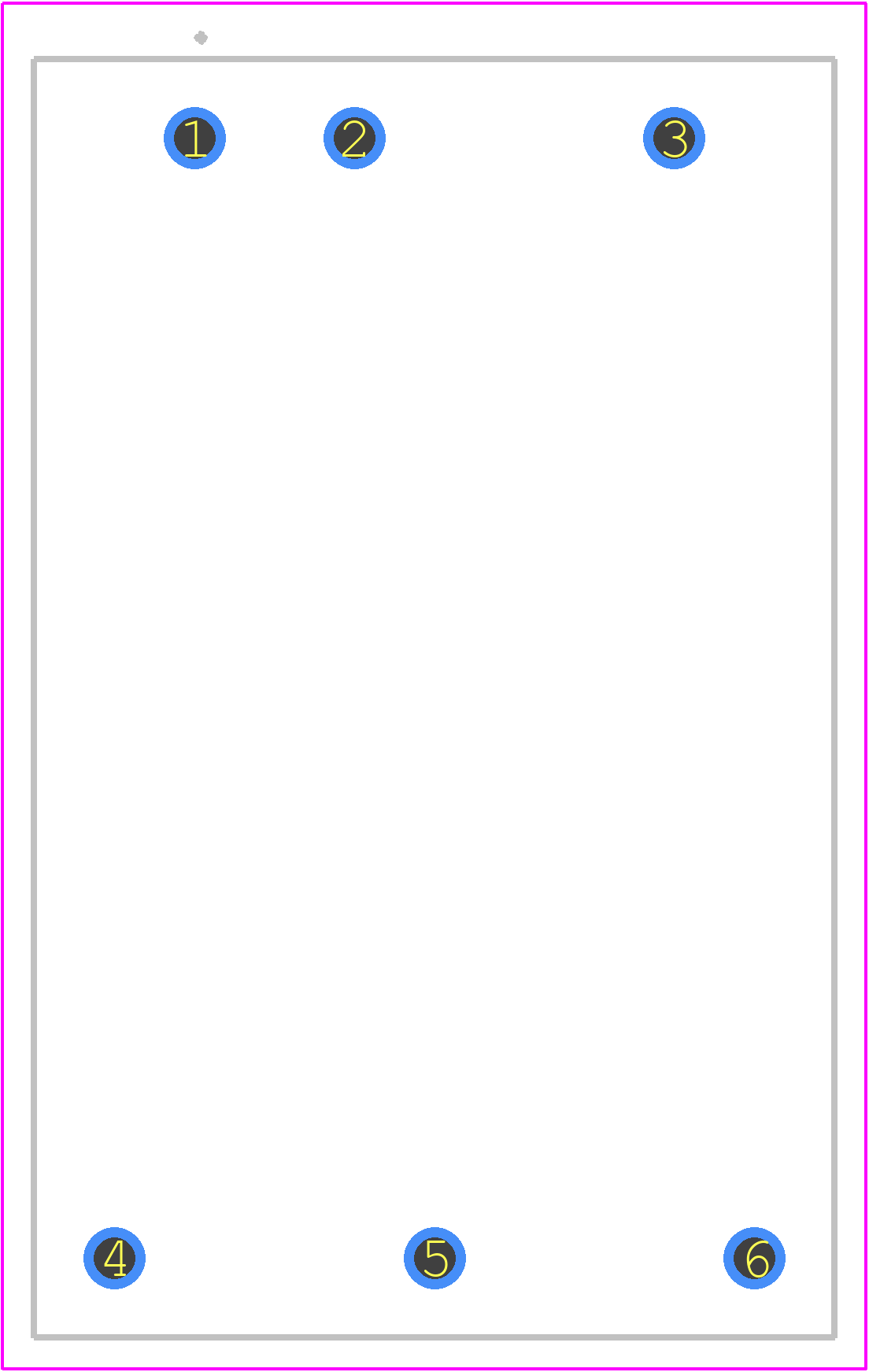

PXG-M20-24WS05 - TDK Lambda PCB footprint - Other - Other - PXG-M20-24WS15-1
click to zoom
3D Models
PXG-M20-24WS05 - TDK Lambda - 3D model - Other - PXG-M20-24WS15-1
click to zoom

PXG-M20-24WS05 Details

  • Manufacturer Part Number:

    PXG-M20-24WS05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-08-05

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PXG-M20-24WS05 Frequently Asked Questions (FAQs)

  • The recommended input fuse rating is 2A slow-blow type, but it's recommended to consult the datasheet and application notes for specific requirements.
  • The PXG-M20-24WS05 is rated for operation up to 71°C, but derating may be required for temperatures above 50°C. Consult the datasheet and application notes for specific guidance.
  • The typical efficiency of the PXG-M20-24WS05 is around 85-90% depending on the input voltage and output load. Consult the datasheet for specific efficiency curves.
  • Yes, multiple units can be paralleled for higher output power, but it's recommended to consult the datasheet and application notes for specific guidance on synchronization and current sharing.
  • The MTBF of the PXG-M20-24WS05 is typically around 500,000 hours to 1,000,000 hours, depending on the operating conditions and environment. Consult the datasheet for specific MTBF data.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PXG-M20-24WS05 Overview

Use the download button to access the PXG-M20-24WS05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXG-M, or try a keyword search, such as Power Supply Modules
