- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PXG.M0.6GG.NG
- Part Number PXG.M0.6GG.NG
- Manufacturer LEMO
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - PXG.M0.6GG.NG-5
- Released Date Feb 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PXG.M0.6GG.NG Details
-
Manufacturer Part Number:
PXG.M0.6GG.NG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Switzerland
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
LEMO connectors
-
Additional Feature:
RATED CURRENT: 6A, IP50
-
Backshell Type:
SOLID
-
Body Depth:
1.189 inch
-
Body Diameter:
0.768 inch
PXG.M0.6GG.NG Frequently Asked Questions (FAQs)
-
The recommended torque for the PXG.M0.6GG.NG connector is 0.6 Nm (5.3 in-lbs) for the nut and 0.4 Nm (3.5 in-lbs) for the screw.
-
Yes, the PXG.M0.6GG.NG connector is designed to withstand high-vibration environments and is often used in aerospace, defense, and industrial applications where vibration is a concern.
-
The PXG.M0.6GG.NG connector is designed to operate in temperatures ranging from -55°C to 150°C and can withstand exposure to various chemicals, including fuels, oils, and cleaning agents. However, it's essential to consult the datasheet and LEMO's application notes for specific guidance on environmental usage.
-
The PXG.M0.6GG.NG connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
-
The PXG.M0.6GG.NG connector is designed for signal transmission and can support high-speed data transmission up to 10 Gb/s. However, the actual data transmission speed may depend on the specific application, cable, and system design.
Trust Checks
Expert Contribution
System Verified
Community Approved
PXG.M0.6GG.NG Overview

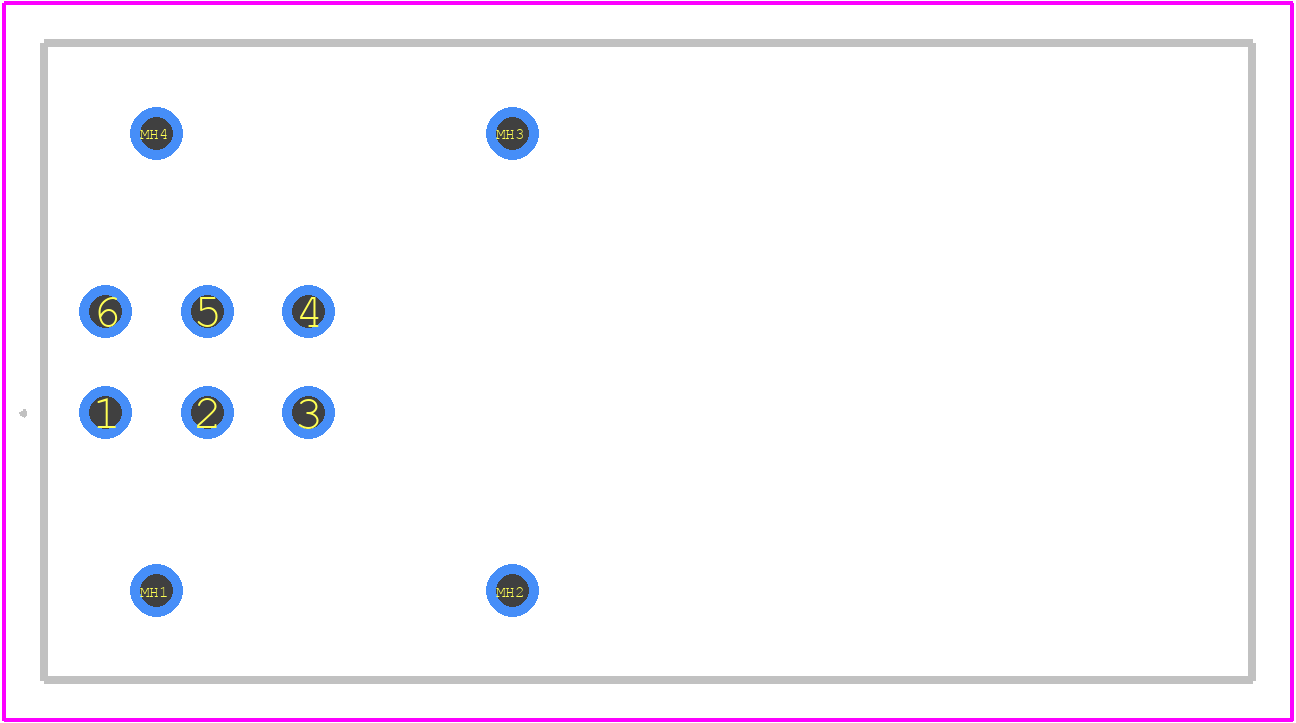

Use the download button to access the PXG.M0.6GG.NG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PXG.M,
or try a keyword search, such as Other Circular Connectors
About LEMO
LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
