PXG.M0.8GG.NG - LEMO

Description: Lemo Redel P Series, 8 Pole Panel Mount Connector Socket, Female Contacts, IP50

Download PXG.M0.8GG.NG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

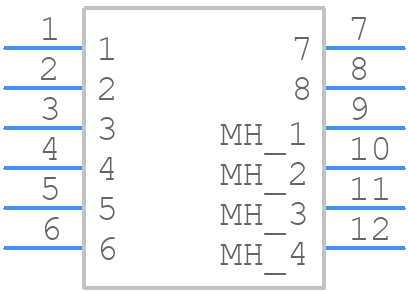

PXG.M0.8GG.NG - LEMO - PCB symbol
click to zoom
PCB Footprints

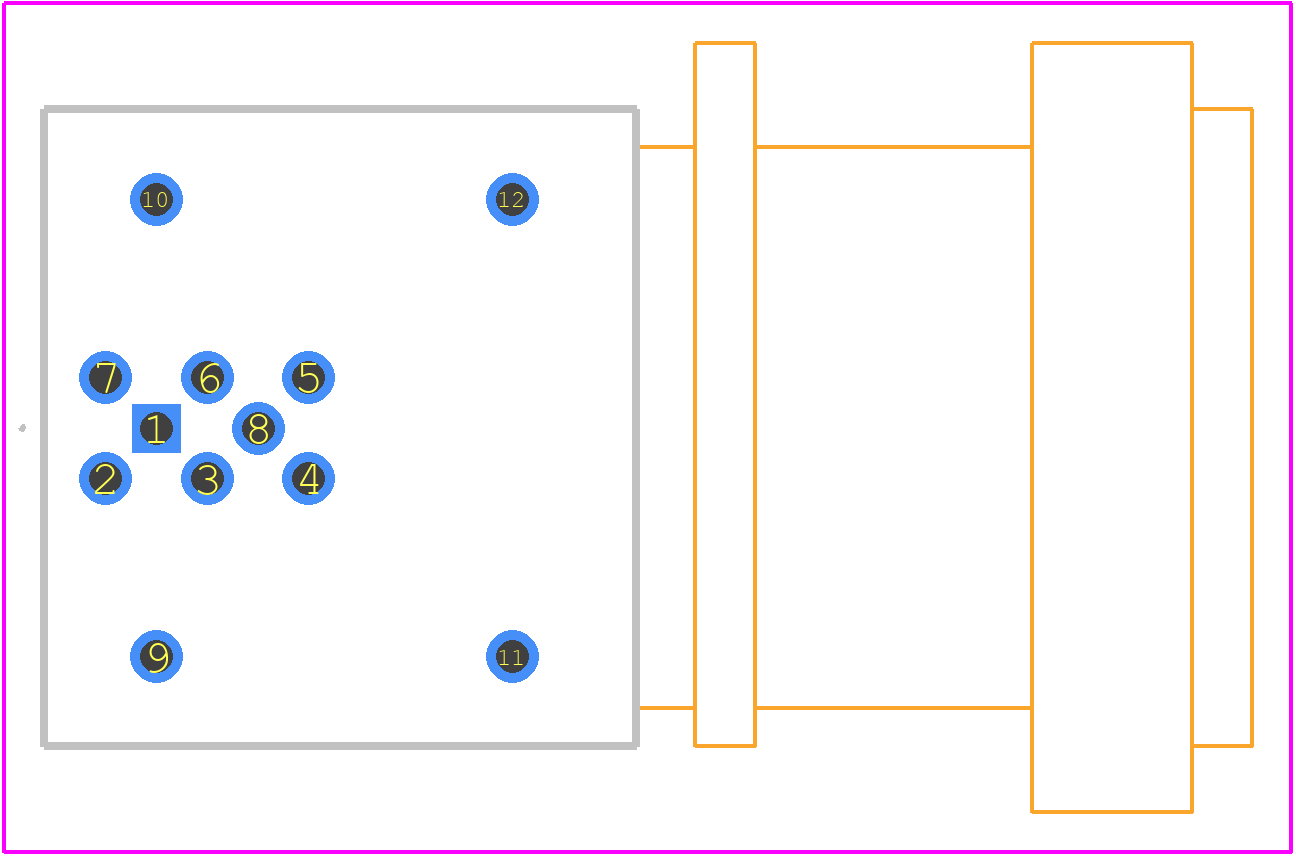

PXG.M0.8GG.NG - LEMO PCB footprint - Other - Other - PXG.M0.8GG.NG-1
click to zoom
3D Models
PXG.M0.8GG.NG - LEMO - 3D model - Other - PXG.M0.8GG.NG-1
click to zoom

PXG.M0.8GG.NG Details

  • Manufacturer Part Number:

    PXG.M0.8GG.NG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    LEMO connectors

  • Additional Feature:

    POLARIZED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

PXG.M0.8GG.NG Frequently Asked Questions (FAQs)

  • The recommended torque is 0.4 Nm (3.5 lbf.in) for the PXG.M0.8GG.NG connector, as specified by LEMO.
  • Yes, the PXG.M0.8GG.NG connector is designed to withstand high vibrations and is suitable for applications where shock and vibration are a concern.
  • Yes, the PXG.M0.8GG.NG connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
  • The maximum operating frequency of the PXG.M0.8GG.NG connector is up to 6 GHz, making it suitable for high-frequency applications.
  • Yes, the PXG.M0.8GG.NG connector is compatible with other LEMO connectors, including the PXG series, and can be mated with other LEMO connectors with the same keying and contact configuration.
