PYB15-Q24-S24 - CUI Inc.

Description: Isolated DC/DC Converters

Download PYB15-Q24-S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

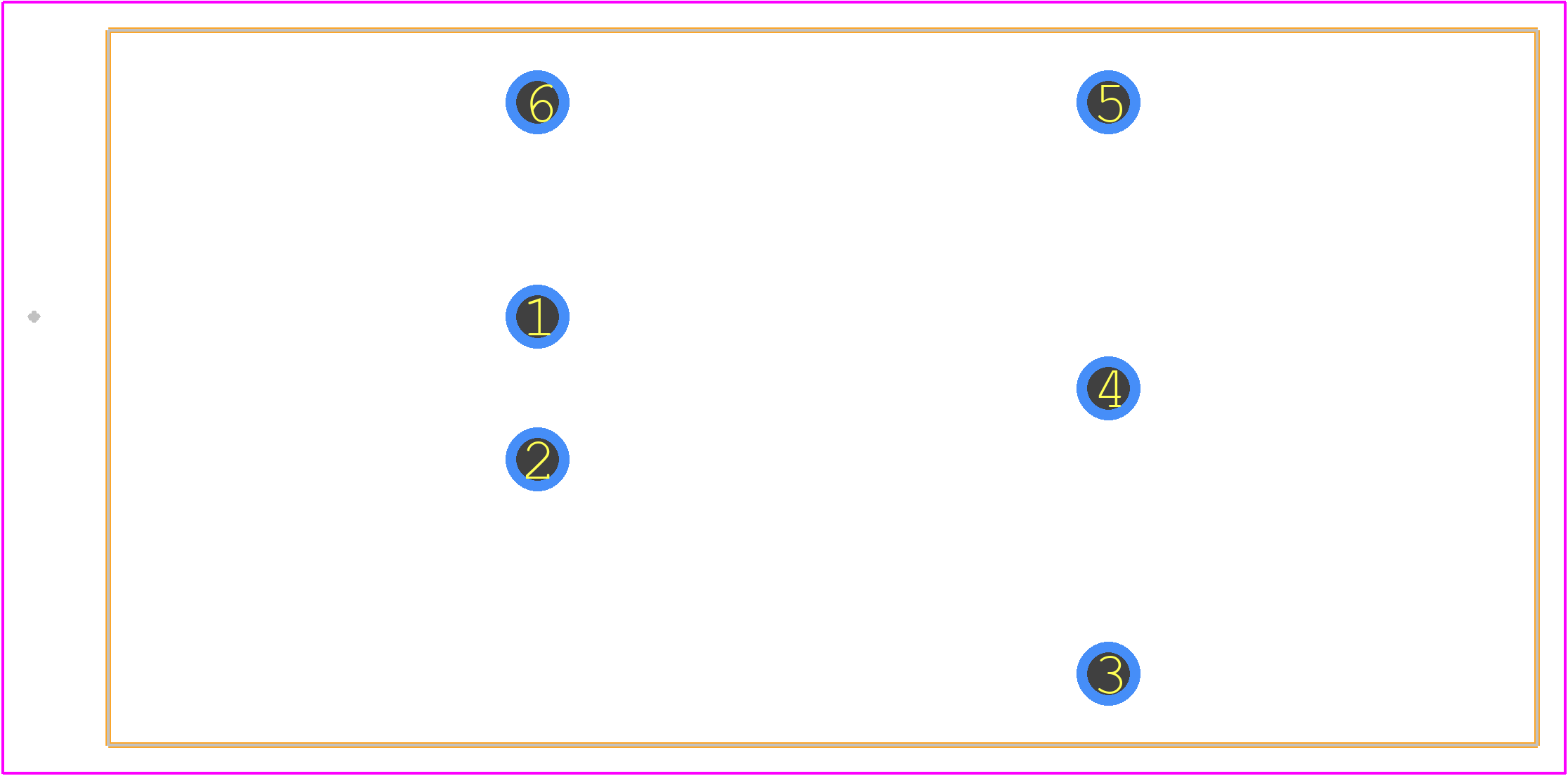

PYB15-Q24-S24 - CUI Inc. PCB footprint - Other - Other - PYB15-Q24-S24-3
click to zoom
3D Models
PYB15-Q24-S24 - CUI Inc.  - 3D model - Other - PYB15-Q24-S24-3
click to zoom

PYB15-Q24-S24 Details

  • Manufacturer Part Number:

    PYB15-Q24-S24

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDMA-P6

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.72 V

  • Output Voltage-Min:

    23.28 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    12.1 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

PYB15-Q24-S24 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other side of the board. This will help to reduce the thermal resistance and improve the overall thermal performance of the device.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device. Avoid applying excessive force or pressure, which can damage the device.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
  • To protect the device from overvoltage and overcurrent conditions, consider adding overvoltage protection (OVP) and overcurrent protection (OCP) circuits to your design. These can be implemented using zener diodes, TVS diodes, and current-sensing resistors.
  • The recommended output capacitor value is 10uF to 22uF, with a voltage rating of 10V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
