PYB20-Q24-D12 footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

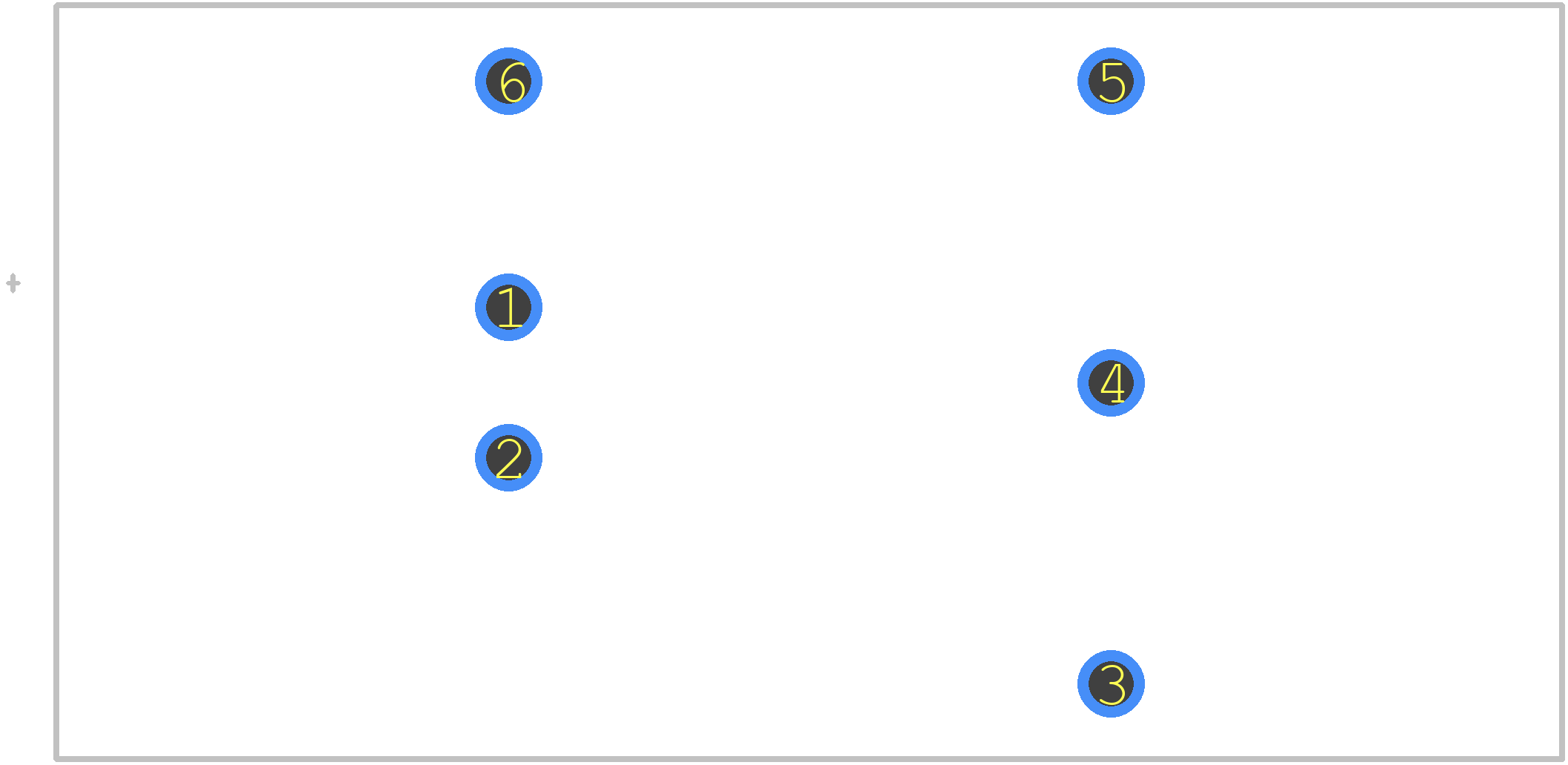

PCB Footprints

PYB20-Q24-D12 - CUI Inc. PCB footprint - Other - Other - PYB20-Q48-D15

click to zoom

3D Models

PYB20-Q24-D12 - CUI Inc. - 3D model - Other - PYB20-Q48-D15

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PYB20-Q24-D12
Part Number PYB20-Q24-D12
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PYB20-Q48-D15
Released Date Nov 16, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PYB20-Q24-D12 Details

Manufacturer Part Number:
PYB20-Q24-D12
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-MDMA-P6
Length:
50.8 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.834 A
Output Voltage-Max:
12.36 V
Output Voltage-Min:
11.64 V
Output Voltage-Nom:
12 V
Package Body Material:
METAL
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,0.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
12.1 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
20 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

PYB20-Q24-D12 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the PYB20-Q24-D12 is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. CUI recommends following the recommended PCB layout and securing the device with a suitable adhesive or mechanical fastening method.
The PYB20-Q24-D12 can handle surge currents up to 2x the rated current for a duration of 10ms. However, it's essential to ensure that the device is properly sized for the application and that the surge current does not exceed the maximum rating.
The PYB20-Q24-D12 is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. CUI recommends derating the device's output current and voltage according to the temperature derating curve provided in the datasheet.
CUI recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be rated for the input voltage and should be placed as close to the device as possible to minimize noise and ripple.
