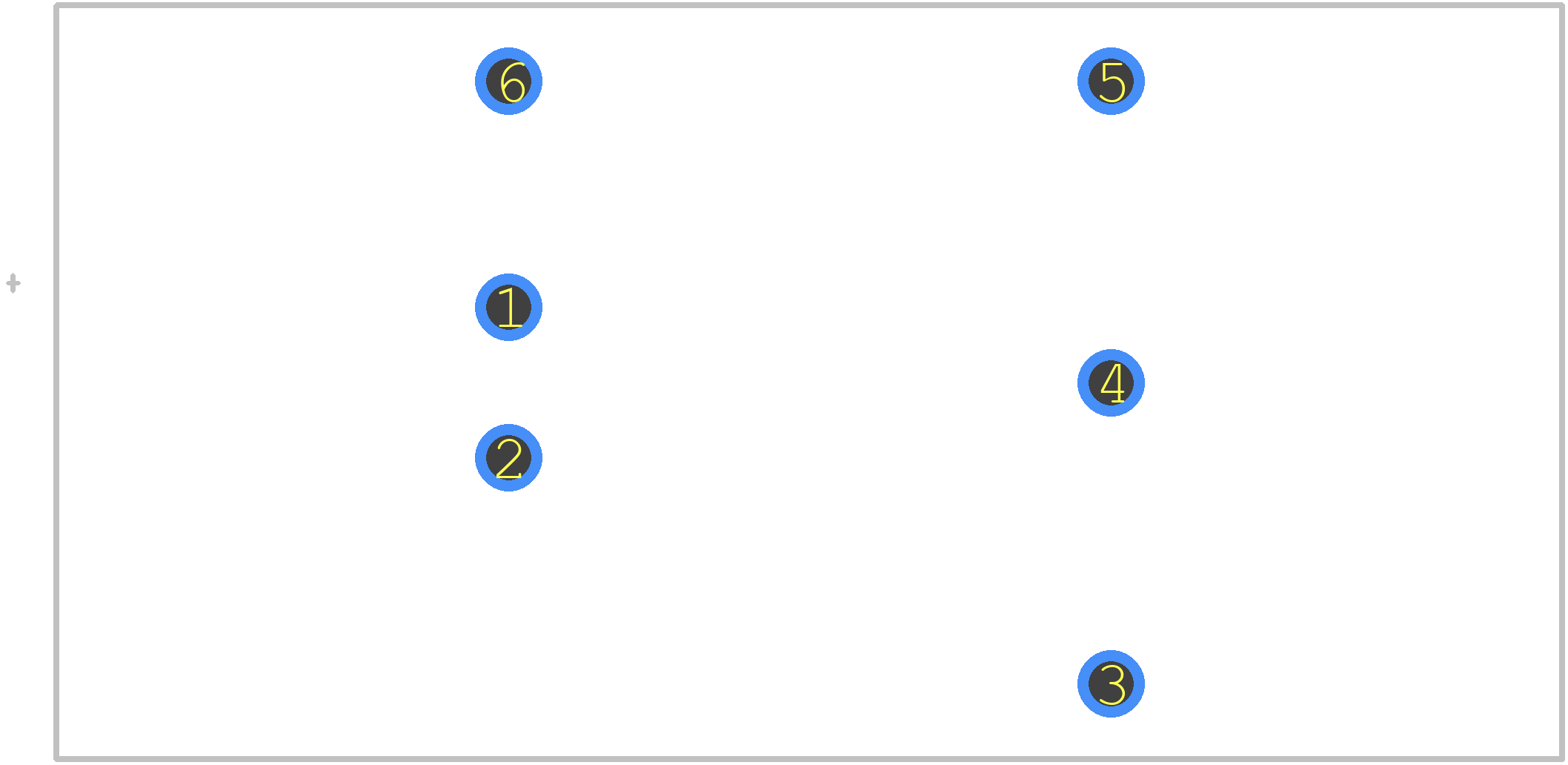

PYB20-Q48-D15 - CUI Inc. PCB footprint - Other - Other - PYB20-Q48-D15

click to zoom

3D Models

PYB20-Q48-D15 - CUI Inc. - 3D model - Other - PYB20-Q48-D15

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PYB20-Q48-D15
Part Number PYB20-Q48-D15
Manufacturer CUI Inc.
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - PYB20-Q48-D15
Released Date Feb 19, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PYB20-Q48-D15 Details

Manufacturer Part Number:
PYB20-Q48-D15
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-MDMA-P6
Length:
50.8 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.667 A
Output Voltage-Max:
15.45 V
Output Voltage-Min:
14.55 V
Output Voltage-Nom:
15 V
Package Body Material:
METAL
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,0.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
12.1 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
20 W
Trim/Adjustable Output:
NO
Width:
25.4 mm

PYB20-Q48-D15 Frequently Asked Questions (FAQs)

CUI recommends a 2-layer PCB with a solid ground plane and a thermal relief pattern under the module. Ensure good airflow and consider adding a heat sink or thermal interface material for high-power applications.
Follow proper PCB design and layout guidelines, use a metal enclosure, and ensure proper grounding and shielding. Additionally, consider adding EMI filters or common-mode chokes to the input and output lines.
The derating curve is typically provided in the datasheet or can be requested from CUI. It shows the maximum output power at different ambient temperatures. For the PYB20-Q48-D15, the derating curve indicates a 1.5% power reduction per degree Celsius above 40°C.
Yes, the PYB20-Q48-D15 can be used in redundant or parallel configurations, but it's essential to ensure proper synchronization and current sharing. Consult with CUI or a qualified engineer to design a reliable and efficient parallel or redundant system.
CUI recommends using a π-filter (C-L-C) or a common-mode choke on the input and output lines to reduce EMI and improve noise immunity. The specific component values and types depend on the application and system requirements.
