PYB30-Q48-T515 footprint, schematic symbol and 3D model by CUI Inc.

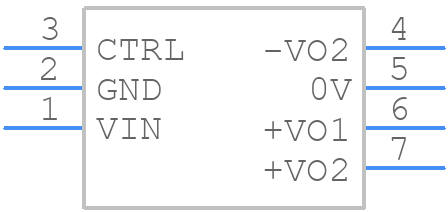

Symbol

click to zoom

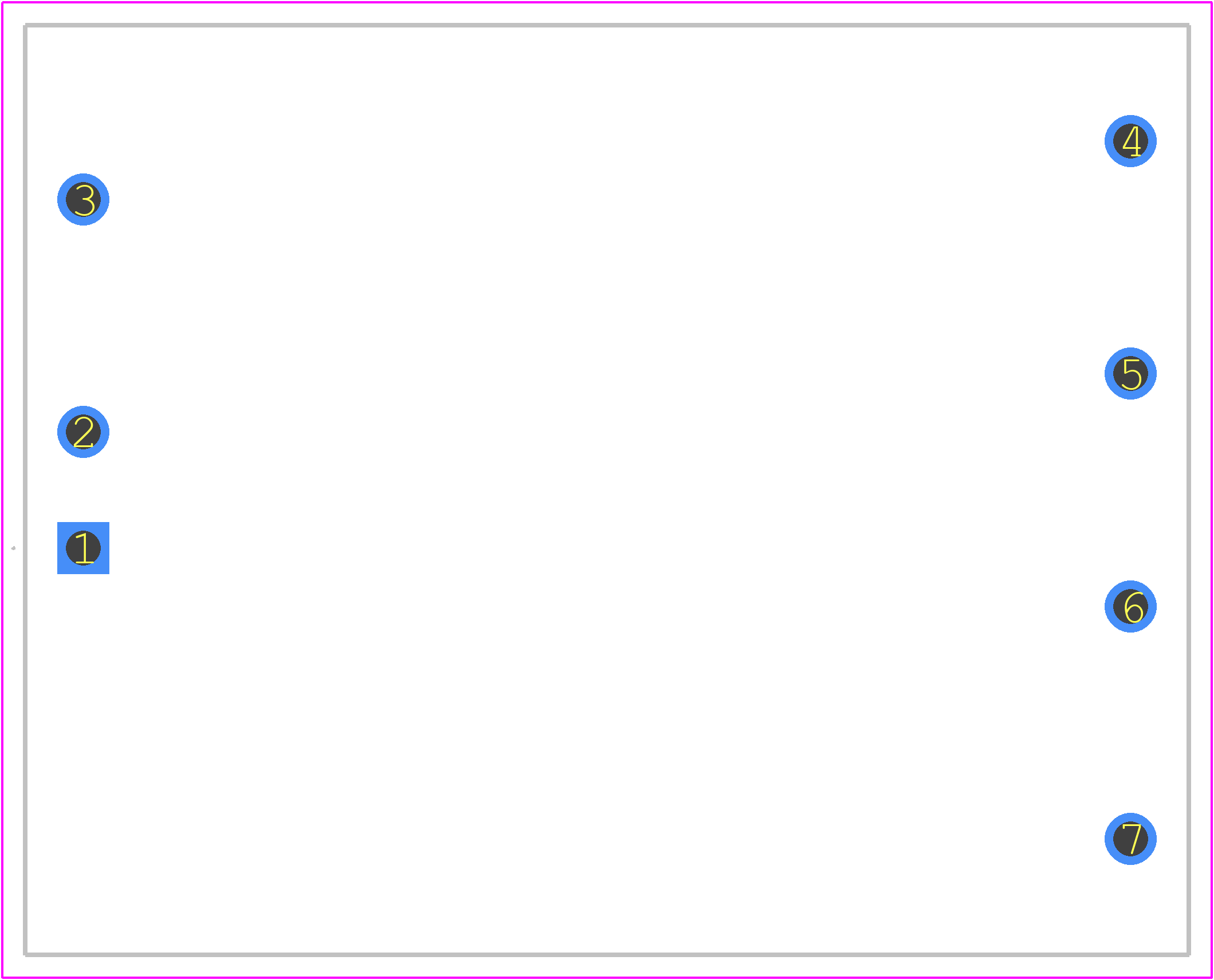

PCB Footprints

PYB30-Q48-T515 - CUI Inc. PCB footprint - Other - Other - PYB30-Q48-T515-1

click to zoom

3D Models

PYB30-Q48-T515 - CUI Inc. - 3D model - Other - PYB30-Q48-T515-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PYB30-Q48-T515
Part Number PYB30-Q48-T515
Manufacturer CUI Inc.
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - PYB30-Q48-T515-1
Released Date May 10, 2024
Last Modified Date May 10, 2024 2:14 PM UTC
Pinout / Pin List Click Here (Member Only)

PYB30-Q48-T515 Details

Manufacturer Part Number:
PYB30-Q48-T515
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
SEATED HEIGHT NOM; ALSO AVAILABLE VOLTAGE: -15VDC/+15VDC
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-MDMA-P7
Length:
50.8 mm
Load Regulation-Max:
2%
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
7
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.15 V
Output Voltage-Min:
4.85 V
Output Voltage-Nom:
5 V
Package Body Material:
METAL
Package Code:
DMA
Package Equivalence Code:
MODULE,7LEAD,1.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
12.05 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
40.6 mm

PYB30-Q48-T515 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. For thermal management, ensure good airflow and consider using a heat sink or thermal interface material.
To ensure EMC, follow proper PCB layout and grounding practices. Use a metal enclosure and ensure the power supply is installed at least 1 inch away from other components. Additionally, use EMI filters and shielding if necessary.
The derating curve for the PYB30-Q48-T515 is available upon request from CUI Inc. In general, the power supply's output power will decrease as the temperature increases. Consult the datasheet or contact CUI Inc for specific derating information.
Yes, the PYB30-Q48-T515 can be used in a redundant or N+1 configuration. However, ensure that the power supplies are synchronized and configured correctly to prevent any issues. Consult CUI Inc or a qualified engineer for guidance on implementing a redundant configuration.
The PYB30-Q48-T515 has various agency approvals and certifications, including UL, cUL, CE, and RoHS. Consult the datasheet or contact CUI Inc for specific certification information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PYB30-Q48-T515 Overview

Use the download button to access the PYB30-Q48-T515 schematic symbol, PCB footprint, and 3D model.
