CUI Inc recommends a PCB layout with a solid ground plane, minimal trace length, and a decoupling capacitor (e.g., 10uF) between the input and output pins to ensure stable operation and minimize EMI.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, keep the device away from heat sources, and consider derating the output power according to the temperature derating curve provided in the datasheet.
The maximum cable length for the output connectors depends on the specific application and the type of cable used. As a general guideline, CUI Inc recommends keeping the cable length under 1 meter to minimize voltage drop and ensure reliable operation.
Yes, the PYBE10-Q24-S5 can be used in a redundant or parallel configuration, but it's essential to follow proper design guidelines and ensure that the modules are synchronized and properly connected to avoid any potential issues.
CUI Inc provides an MTBF rating of 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F. However, the actual MTBF may vary depending on the specific application, operating conditions, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PYBE10-Q24-S5 Overview

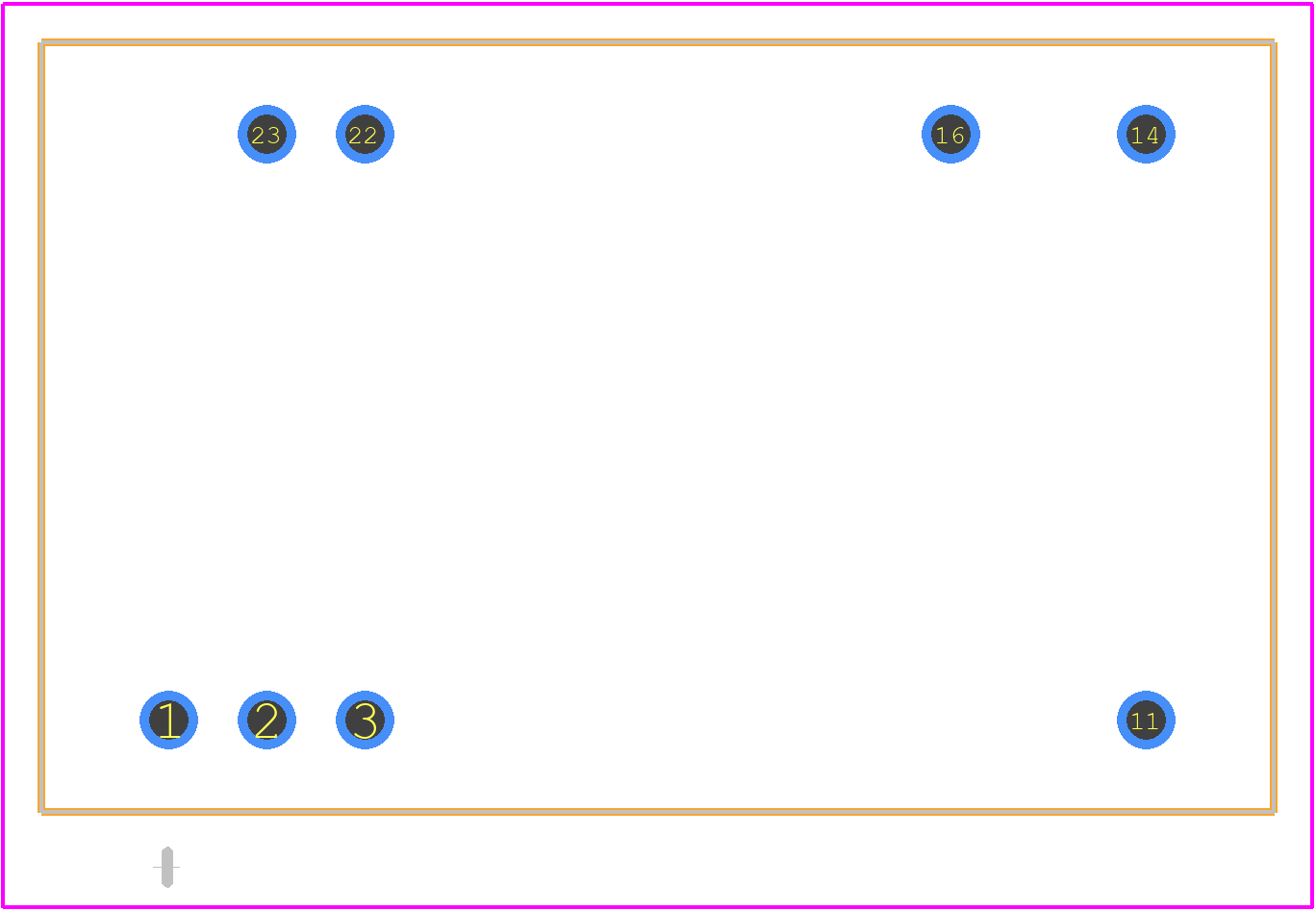

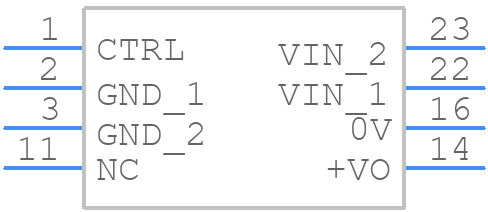

Use the download button to access the PYBE10-Q24-S5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PYBE1,
or try a keyword search, such as Power Supply Modules
