CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable startup and shutdown, CUI recommends a soft-start circuit to limit inrush current and a shutdown circuit to prevent voltage spikes. Additionally, a minimum load of 10% is recommended to ensure stable operation.
CUI provides derating curves for temperature and altitude in their application notes. For the PYBE20-Q24-D15, the derating curve for temperature is 2.5% per °C above 40°C, and for altitude, it is 1.5% per 1,000 feet above sea level.
Yes, the PYBE20-Q24-D15 can be used in a redundant configuration. However, CUI recommends using a diode ORing circuit to prevent back-feeding and ensure reliable operation. Additionally, a redundant configuration may require additional components and design considerations.
CUI provides an MTBF rating of 550,000 hours at 40°C, calculated according to MIL-HDBK-217F. However, this rating may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PYBE20-Q24-D15 Overview

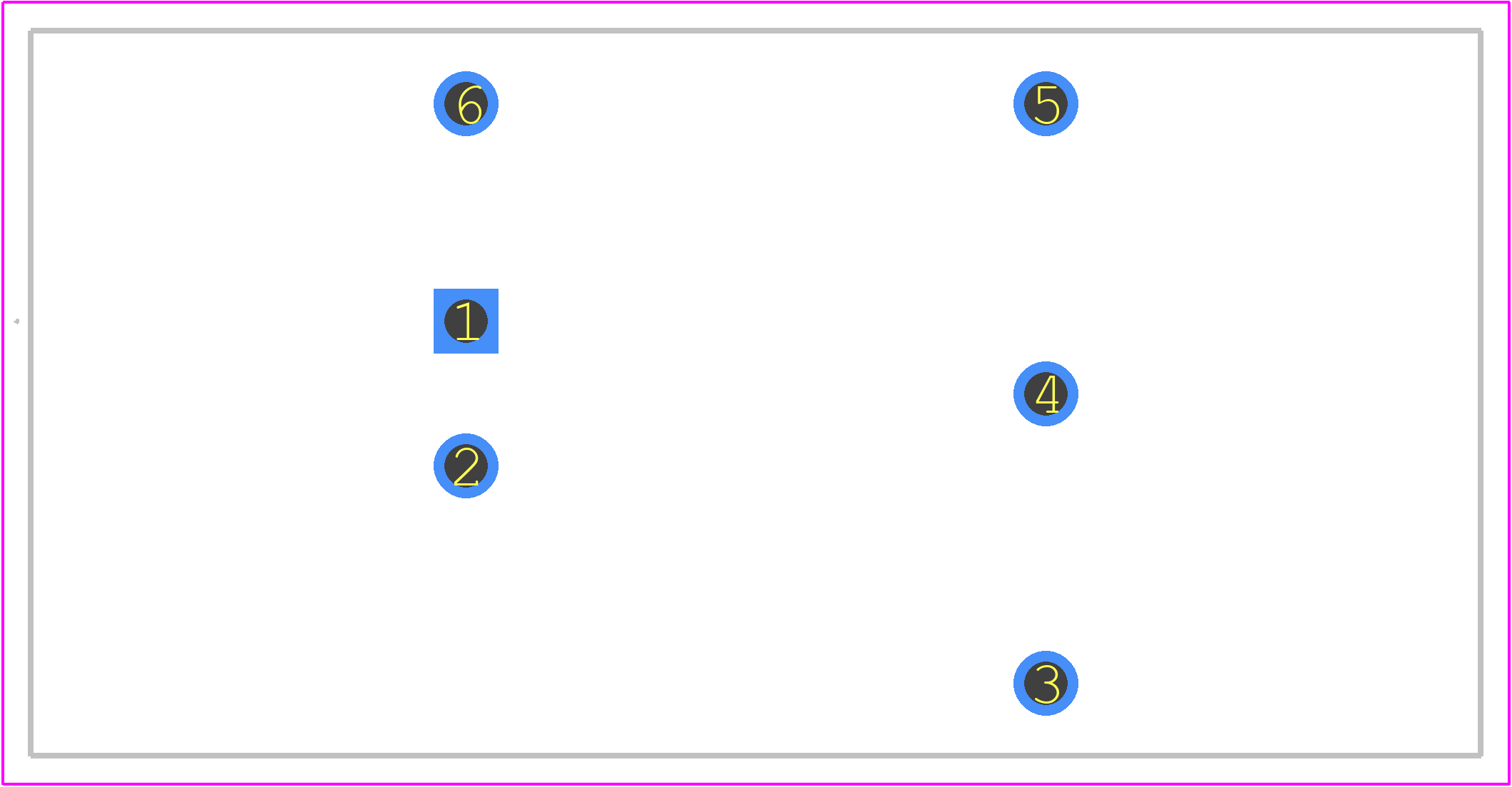

Use the download button to access the PYBE20-Q24-D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PYBE2,
or try a keyword search, such as Power Supply Modules
