OVER CURRENT, OVER VOLTAGE, REVERSE POLARITY, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053025 Vrms
Screening Level:
EN 62368-1
Seated Height-Max:
12.3 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.01 s
Width:
25.4 mm
PYBE30-Q24-D5 Frequently Asked Questions (FAQs)
CUI Inc recommends a PCB layout with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure good airflow around the module and avoid blocking the airflow vents.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture, vibration, or physical stress. Regularly inspect the module for signs of wear or damage.
The PYBE30-Q24-D5 is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a metal enclosure, ensure proper grounding, and keep the module away from sensitive components. Implement EMI filters or shielding if necessary.
Yes, the PYBE30-Q24-D5 can be used in redundant or parallel configurations. However, ensure that the modules are properly synchronized and configured to avoid output voltage conflicts. Consult CUI Inc's application notes or contact their technical support for guidance.
The typical lead time for the PYBE30-Q24-D5 is 8-12 weeks, and the minimum order quantity (MOQ) is 100 pieces. However, these may vary depending on the region, distributor, and availability. Contact CUI Inc or their authorized distributors for the most up-to-date information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PYBE30-Q24-D5 Overview

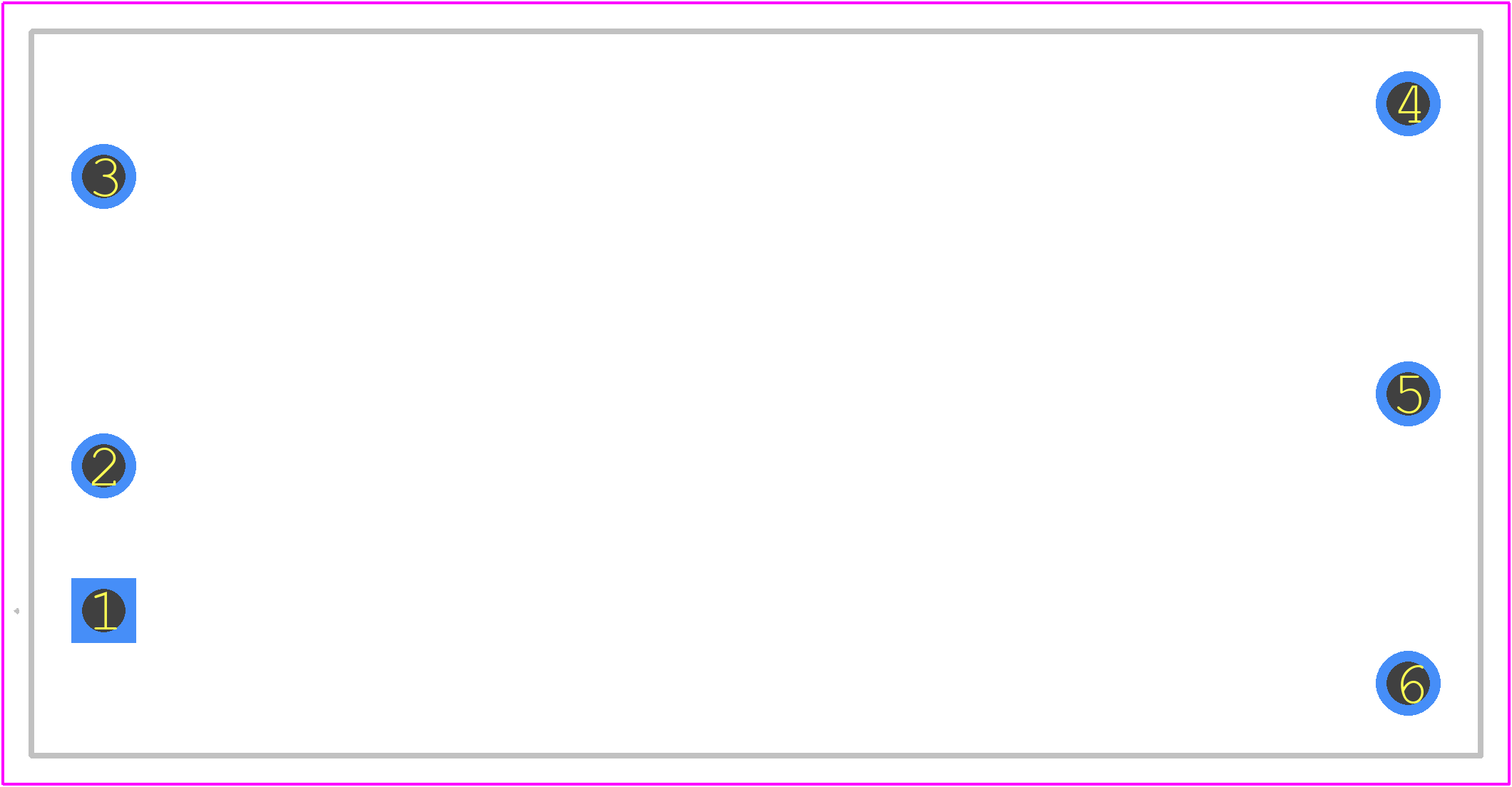

Use the download button to access the PYBE30-Q24-D5 schematic symbol, PCB footprint, and 3D model.
