PYQ1548/7659 - Excelitas Technologies

Description: Sensor PIR (Passive Infrared) Low Power TO-5 Variant, 4 Leads, Lens Top Metal Can, 1.8V to 3.6V, −40◦C to +70 ◦C

Download PYQ1548/7659 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

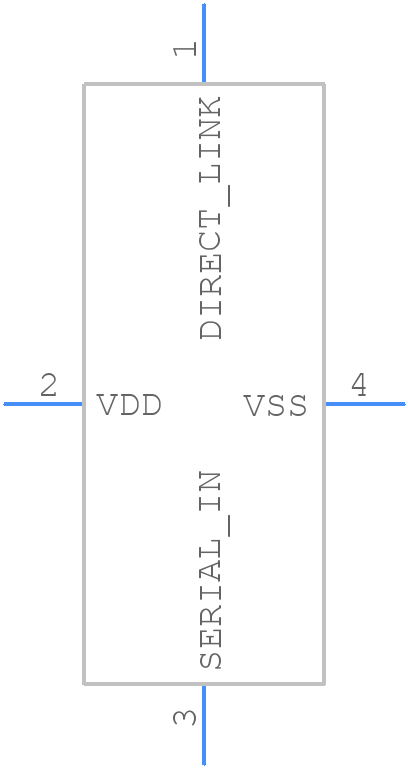

Symbol
PYQ1548/7659 - Excelitas Technologies - PCB symbol
click to zoom
PCB Footprints
PYQ1548/7659 - Excelitas Technologies PCB footprint - Other - Other - TO-5_2026
click to zoom

PYQ1548/7659 Details

  • Manufacturer Part Number:

    PYQ1548/7659

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Excelitas Technologies Corporation

  • YTEOL:

    7

  • Sensors/Transducers Type:

    INFRARED SENSOR, THERMAL, PYROELECTRIC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PYQ1548/7659 Overview

Use the download button to access the PYQ1548/7659 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PYQ15, or try a keyword search, such as Infrared Sensors
