Q1553-2 - iNRCORE

Description: Interface, MIL-STD-1553 Pulse Transformer 1.4CT:1CT, 2CT:1CT Through Hole

Download Q1553-2 Model

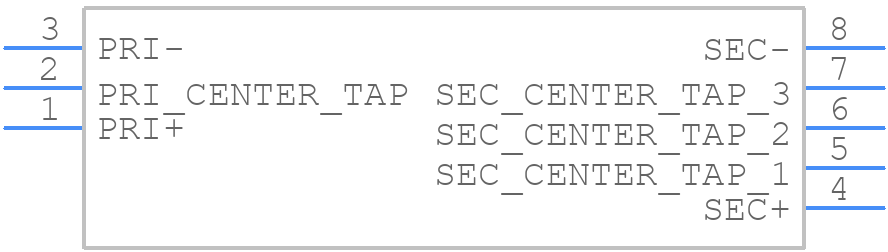

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
Q1553-2 - iNRCORE PCB footprint - Other - Other - Q1553-2-1
click to zoom
3D Models
Q1553-2 - iNRCORE  - 3D model - Other - Q1553-2-1
click to zoom

Q1553-2 Details

  • Manufacturer Part Number:

    Q1553-2

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    iNRCORE LLC

  • YTEOL:

    4

  • Additional Feature:

    STANDARD: MIL-PRF-21038

  • Application:

    GENERAL PURPOSE

  • Approvals:

    MIL-STD-1553

  • Height:

    6.35 mm

  • Length:

    15.86 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -55 °C

  • Surface Mount:

    NO

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1.40CT:1CT; 2CT:1CT

  • Width:

    15.86 mm

Q1553-2 Frequently Asked Questions (FAQs)

  • The Q1553-2 can operate from -40°C to 85°C, but it's recommended to operate within -20°C to 70°C for optimal performance.
  • To ensure reliable data transmission, ensure proper bus termination, use shielded cables, and maintain a maximum bus length of 300 feet. Also, follow the recommended connector and cable assembly guidelines.
  • Yes, the Q1553-2 is designed to support redundant and fault-tolerant systems. It has built-in features like dual-redundant buses, error detection, and correction mechanisms to ensure high system availability.
  • The typical power consumption of the Q1553-2 is around 1.5W, but it can vary depending on the operating frequency, bus activity, and other factors. Consult the datasheet for more information.
  • For troubleshooting, use the built-in diagnostic features, such as the internal self-test, error counters, and status registers. You can also use external test equipment, like logic analyzers or oscilloscopes, to monitor the bus signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Q1553-2 Overview

Use the download button to access the Q1553-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Q1553, or try a keyword search, such as Pulse/Datacom Transformers
