Q36SR12017NRFA - Delta Electronics

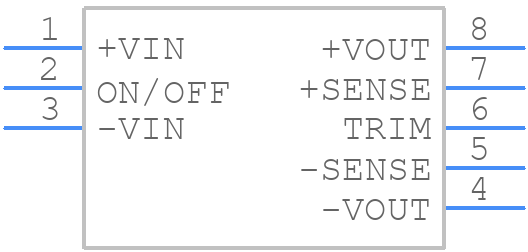

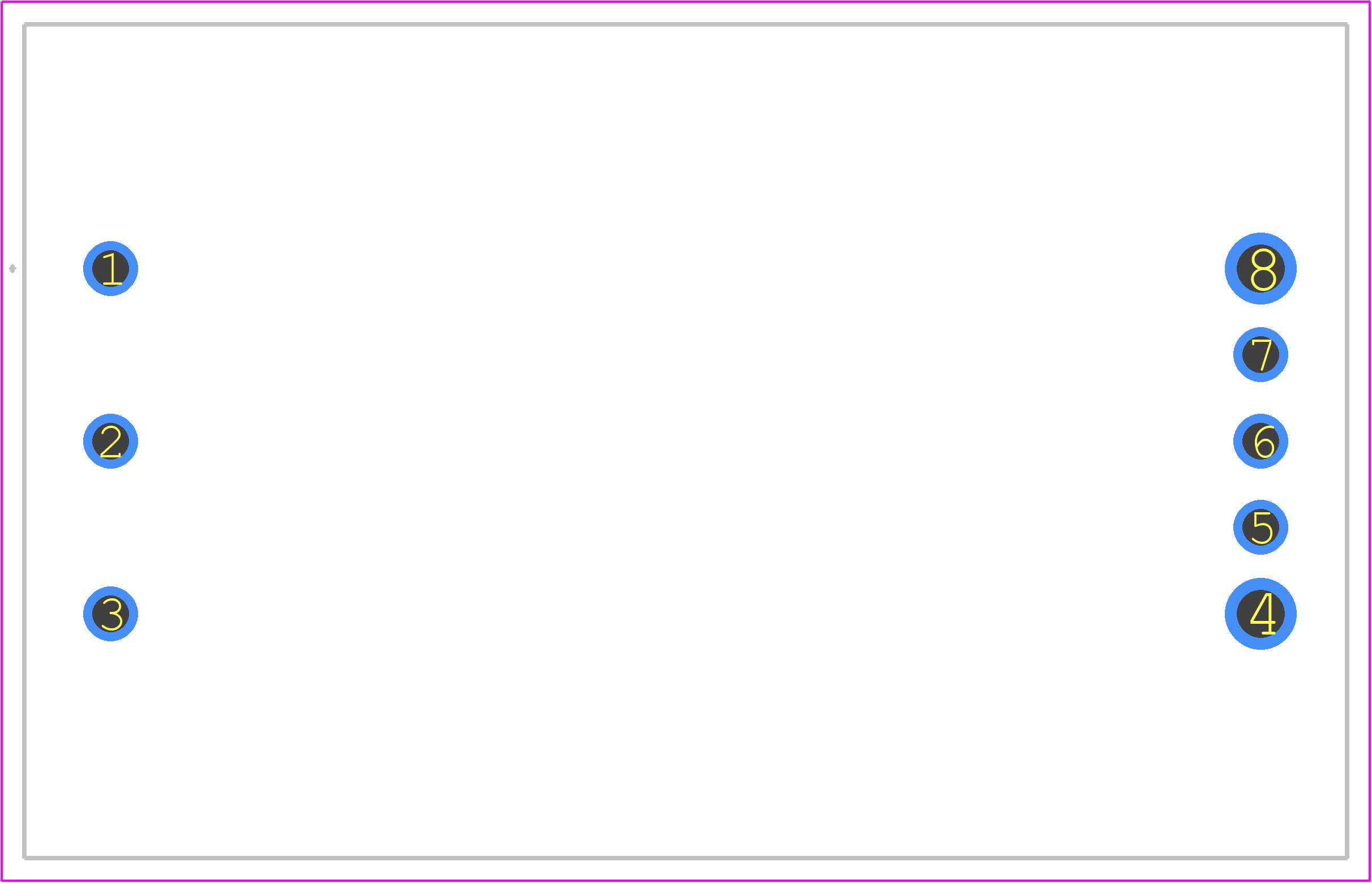

Q36SR12017NRFA Details

• Manufacturer Part Number:

  Q36SR12017NRFA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  1/4 BRICK PACKAGE-8

• ECCN Code:

  EAR99

• Manufacturer:

  Delta Electronics Inc

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL

• Efficiency (Main Output):

  93%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-XDMA-P8

• JESD-609 Code:

  e3

• Length:

  58.4 mm

• Line Regulation-Max:

  0.0018%

• Load Regulation-Max:

  0.125%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  17 A

• Output Voltage-Max:

  13.2 V

• Output Voltage-Min:

  10.8 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Seated Height-Max:

  11.7 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  260 kHz

• Technology:

  HYBRID

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  204 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.028 s

• Width:

  36.8 mm
