Q4344-BL - COILCRAFT

Description: Power Transformers - Board Mount Q4344 Flybck Regltor -12 V 5.0 V 0.75 A

Download Q4344-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

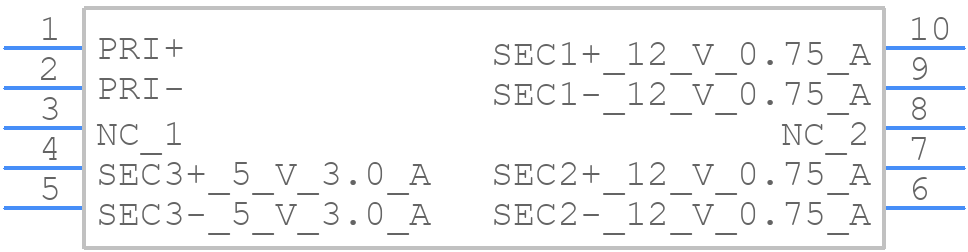

Q4344-BL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

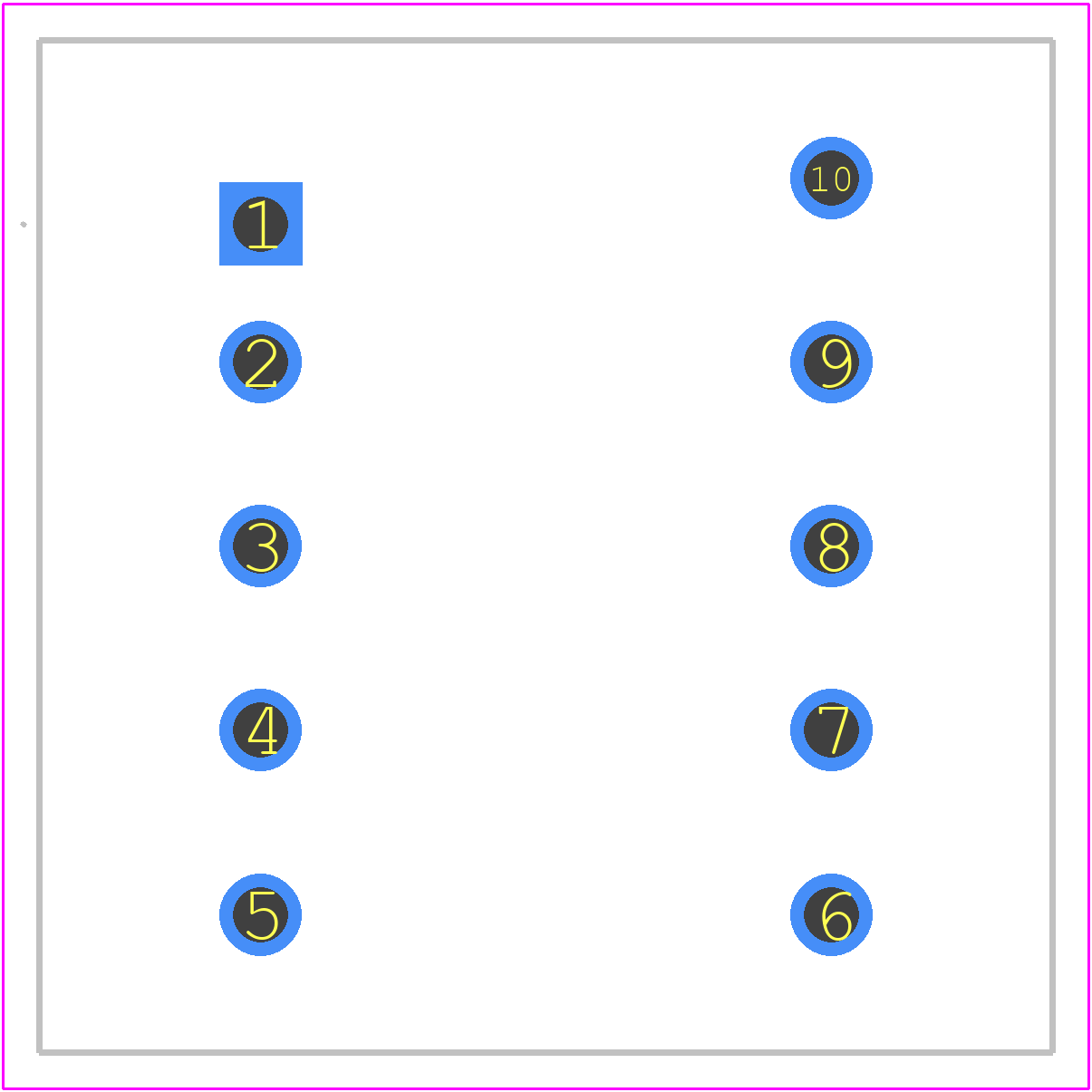

Q4344-BL - COILCRAFT PCB footprint - Other - Other - Q4344-BL-2
click to zoom
3D Models
Q4344-BL - COILCRAFT - 3D model - Other - Q4344-BL-2
click to zoom

Q4344-BL Details

  • Manufacturer Part Number:

    Q4344-BL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Application:

    POWER

  • Height:

    24.13 mm

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Isolation Voltage:

    500 V

  • Length:

    27.94 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    5 V

  • Packing Method:

    TRAY

  • Primary Inductance:

    85 µH

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - Tin (Sn)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    27.94 mm

Q4344-BL Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their documentation, which includes a suggested footprint and pad layout to ensure proper mounting and soldering of the inductor.
  • The Q4344-BL is designed for high-frequency applications, with a self-resonant frequency (SRF) of 100 MHz. It is suitable for use in switching regulators, filters, and other high-frequency circuits.
  • The Q4344-BL has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
  • Yes, the Q4344-BL is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • The typical tolerance for the inductance value of Q4344-BL is ±10%, which is a standard tolerance for inductors in this class.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Q4344-BL Overview

Use the download button to access the Q4344-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Q4344, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
