Store the components in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C (-4°F to 104°F).
Yes, Q4437-BL is designed to withstand vibrations. However, it's essential to ensure proper mounting and secure the component to prevent mechanical stress and damage.
Use standard ESD precautions when handling Q4437-BL, such as wearing an ESD strap, using ESD-safe work surfaces, and storing the components in ESD-safe packaging.
The thermal resistance of Q4437-BL is not explicitly stated in the datasheet. However, Coilcraft provides a thermal model for the component, which can be used to estimate the thermal resistance. Contact Coilcraft support for more information.
Q4437-BL is rated for operation up to 125°C (257°F). However, it's essential to derate the component's performance and consider the temperature coefficient when operating at elevated temperatures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
Q4437-BL Overview

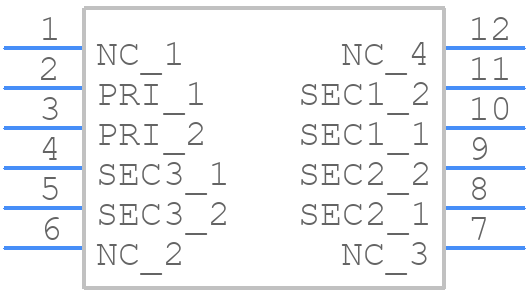

Use the download button to access the Q4437-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Q4437,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
