Q8040K3TP - LITTELFUSE

Description: Triacs POWER THYRISTOR DISCRETE

Download Q8040K3TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
Q8040K3TP - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

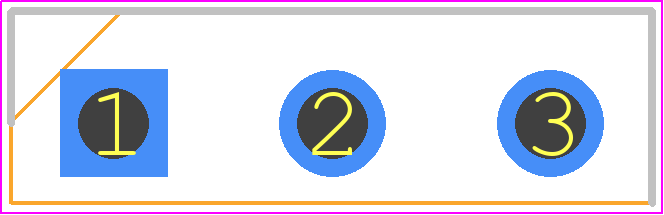

Q8040K3TP - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO- 218AC (K Package)
click to zoom
3D Models
Q8040K3TP - LITTELFUSE - 3D model - Transistor Outline, Vertical - TO- 218AC (K Package)
click to zoom

Q8040K3TP Details

  • Manufacturer Part Number:

    Q8040K3TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-12-04

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Trigger Device Type:

    ALTERNISTOR TRIAC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

Q8040K3TP Overview

Use the download button to access the Q8040K3TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Q8040, or try a keyword search, such as TRIACs
