- Part Number QAT-10+
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Attenuator or Isolator
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC3000_2024
- Released Date Feb 19, 2024
- Last Modified Date Feb 20, 2024 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
QAT-10+ Details
-
Manufacturer Part Number:
QAT-10+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Attenuation-Nom:
10.3 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
32.3 dBm
-
Mounting Feature:
SURFACE MOUNT
QAT-10+ Frequently Asked Questions (FAQs)
-
The QAT-10+ can handle up to +20 dBm of input power without damage, but the recommended maximum input power is +15 dBm for optimal performance.
-
The QAT-10+ has a 50 ohm input and output impedance. To impedance match, use a 50 ohm transmission line or a matching network designed for the specific frequency range of operation.
-
The QAT-10+ operates from -40°C to +85°C, but optimal performance is achieved between 0°C to 50°C.
-
Yes, the QAT-10+ is designed for high-reliability applications and is available in a compact, ruggedized package. However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets the specific requirements of your application.
-
Consult the QAT-10+ datasheet and application notes for troubleshooting guidelines. If issues persist, contact Mini-Circuits' technical support for assistance.
Trust Checks
Community Provided
System Verified
Community Approved
QAT-10+ Overview

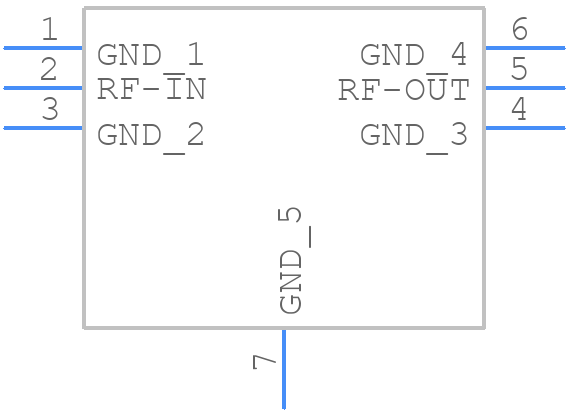

Use the download button to access the QAT-10+ schematic symbol, PCB footprint, and 3D model.
