Part Image

QAT-30+ - Mini-Circuits

Description: Attenuators MMIC ATTENUATOR 30 dB

Download QAT-30+ Model

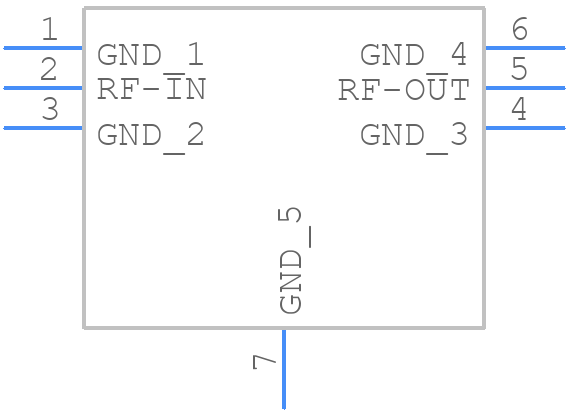

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QAT-30+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC3000
click to zoom
3D Models
QAT-30+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC3000
click to zoom

QAT-30+ Details

  • Manufacturer Part Number:

    QAT-30+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    30.6 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    50000 MHz

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.52

QAT-30+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The QAT-30+ requires a bias voltage of 5V and a bias current of 100mA. It's recommended to use a voltage regulator and a current-limiting resistor to ensure stable biasing. Additionally, the bias voltage should be decoupled with a 10uF capacitor to reduce noise.
  • The QAT-30+ can handle up to 2W of input power. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The QAT-30+ has an input impedance of 50 ohms. To match the impedance, you can use a pi-network or a T-network matching circuit. The values of the matching components can be calculated using Smith chart analysis or simulation software like ADS or AWR.
  • The QAT-30+ can operate over a temperature range of -40°C to +85°C. However, the device's performance may vary with temperature. It's recommended to characterize the device's performance over the desired temperature range to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QAT-30+ Overview

Use the download button to access the QAT-30+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QAT-3, or try a keyword search, such as RF/Microwave Attenuators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
