QAT-5+ - Mini-Circuits

Description: Attenuators MMIC ATTENUATOR 5 dB

Download QAT-5+ Model

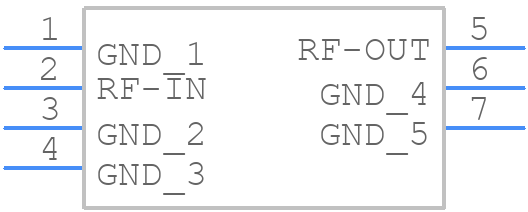

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QAT-5+ - Mini-Circuits PCB footprint - Other - Other - QAT-5+-2
click to zoom
3D Models
QAT-5+ - Mini-Circuits  - 3D model - Other - QAT-5+-2
click to zoom

QAT-5+ Details

  • Manufacturer Part Number:

    QAT-5+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Attenuation-Nom:

    5.4 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.46 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    50000 MHz

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Surface Mount:

    YES

  • VSWR-Max:

    1.4
