QBA-07+ - Mini-Circuits

Description: Power Splitter/Combiner, 2 Way-90° 50Ω 340 to 680 MHz-1

Download QBA-07+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

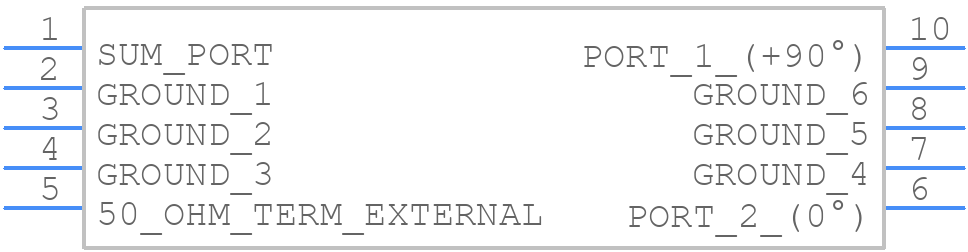

QBA-07+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
QBA-07+ - Mini-Circuits PCB footprint - Other - Other - SM1L
click to zoom
3D Models
QBA-07+ - Mini-Circuits - 3D model - Other - SM1L
click to zoom

QBA-07+ Details

  • Manufacturer Part Number:

    QBA-07+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.55

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    90 DEGREE HYBRID COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QBA-07+ Overview

Use the download button to access the QBA-07+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QBA-0, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
