QCN-3+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download QCN-3+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

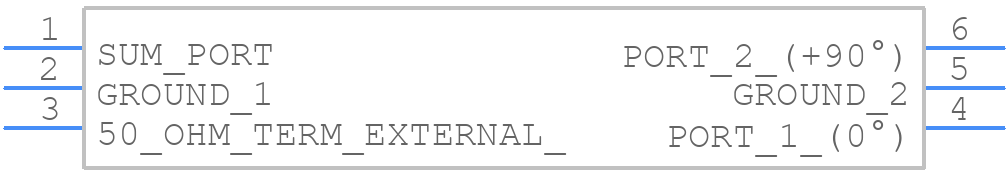

Symbol
QCN-3+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
QCN-3+ - Mini-Circuits PCB footprint - Other - Other - QCN-3+-1
click to zoom
3D Models
QCN-3+ - Mini-Circuits - 3D model - Other - QCN-3+-1
click to zoom

QCN-3+ Details

  • Manufacturer Part Number:

    QCN-3+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):18

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    470 MHz

  • Operating Frequency-Min:

    220 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.06,40

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.2

QCN-3+ Frequently Asked Questions (FAQs)

  • The QCN-3+ can handle up to 1 watt of power, but it's recommended to derate the power handling to 0.5 watts for continuous operation to ensure reliability and longevity.
  • The QCN-3+ has a nominal impedance of 50 ohms, but it's recommended to use a pi-network or a T-network to match the impedance to the desired system impedance. Mini-Circuits provides a matching network design guide on their website.
  • The QCN-3+ can operate from -40°C to +85°C, but the performance may degrade at extreme temperatures. It's recommended to operate the device within the -20°C to +60°C range for optimal performance.
  • Yes, the QCN-3+ is designed and manufactured to meet the requirements of high-reliability applications, including space and military applications. It's built with high-reliability materials and undergoes rigorous testing and screening.
  • Yes, the QCN-3+ is designed to withstand high-vibration environments, including those found in aerospace and defense applications. However, it's recommended to follow proper mounting and installation procedures to ensure the device can withstand the expected vibration levels.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QCN-3+ Overview

Use the download button to access the QCN-3+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QCN-3, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
