- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QCN-45+
- Part Number QCN-45+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QCN-45+-1
- Released Date Oct 16, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QCN-45+ Details
-
Manufacturer Part Number:
QCN-45+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
FV1206, 6 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7.35
-
Additional Feature:
ISOLATION-MIN (DB):15
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
QCN-45+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint for QCN-45+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network to match the QCN-45+ to your system's impedance. You can use their online impedance matching tool or consult with their application engineers for guidance.
-
While the datasheet doesn't specify a maximum power handling, Mini-Circuits recommends derating the power handling based on the operating frequency and temperature. As a general rule, the QCN-45+ can handle up to 1W of power, but it's essential to consult with Mini-Circuits' application engineers for specific guidance.
-
Yes, the QCN-45+ is designed to meet the requirements of high-reliability and space-constrained applications. Mini-Circuits offers a range of screening options, including military-grade screening, to ensure the QCN-45+ meets the necessary standards.
-
Mini-Circuits provides a range of troubleshooting resources, including application notes and technical support. Common issues can often be resolved by checking the PCB layout, impedance matching, and soldering quality. If the issue persists, consult with Mini-Circuits' application engineers for guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
QCN-45+ Overview

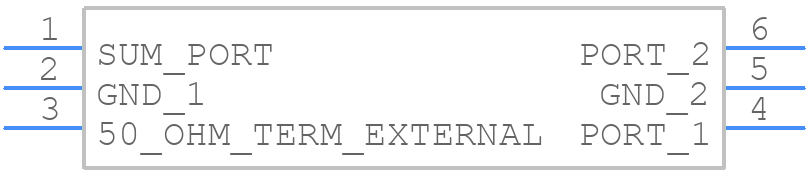

Use the download button to access the QCN-45+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QCN-4,
or try a keyword search, such as RF/Microwave Splitter/Combiners
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
