QCS-592+ - Mini-Circuits

Description: RF Power Divider 3.1 GHz ~ 5.9 GHz Isolation (Min) 20dB, 1.2 VSWR (Typ), 5° Imbalance (Max) 0805 (2012 Metric), 6 PC Pad

Download QCS-592+ Model

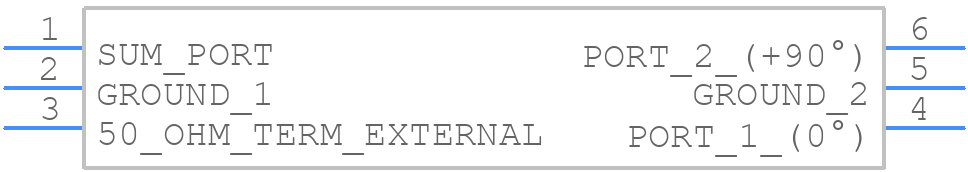

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QCS-592+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-1_2024
click to zoom
3D Models
QCS-592+ - Mini-Circuits  - 3D model - Other - GE0805C-1_2024
click to zoom

QCS-592+ Details

  • Manufacturer Part Number:

    QCS-592+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.079 X 0.049 INCH, 0.033 INCH HEIGHT, ROHS COMPLIANT, CASE, GE0805C-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.25

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    41.76 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    16 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    5900 MHz

  • Operating Frequency-Min:

    3100 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.2

QCS-592+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the QCS-592+. It's recommended to use a solid ground plane on the PCB, and to connect the device's ground pins to it. Additionally, keep the signal traces short and away from noise sources. A 4-layer PCB with a dedicated ground plane is ideal.
  • The QCS-592+ requires a bias voltage of 5V and a bias current of 100mA. Ensure that the power supply is clean and regulated, and that the bias voltage is applied correctly to the device. A voltage regulator or a dedicated bias circuit is recommended.
  • The QCS-592+ can handle input powers up to +15dBm. Exceeding this limit may cause damage to the device or affect its performance. It's recommended to use an attenuator or a limiter to prevent overdrive.
  • The QCS-592+ is a broadband device, but its performance can be optimized for a specific frequency range by adjusting the input and output matching networks. Use a network analyzer and simulation software to optimize the matching networks for the desired frequency range.
  • The typical noise figure of the QCS-592+ is around 3.5dB. To minimize the noise figure, ensure that the device is properly biased, and that the input and output matching networks are optimized. Additionally, use a low-noise power supply and keep the device away from noise sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QCS-592+ Overview

Use the download button to access the QCS-592+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QCS-5, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
